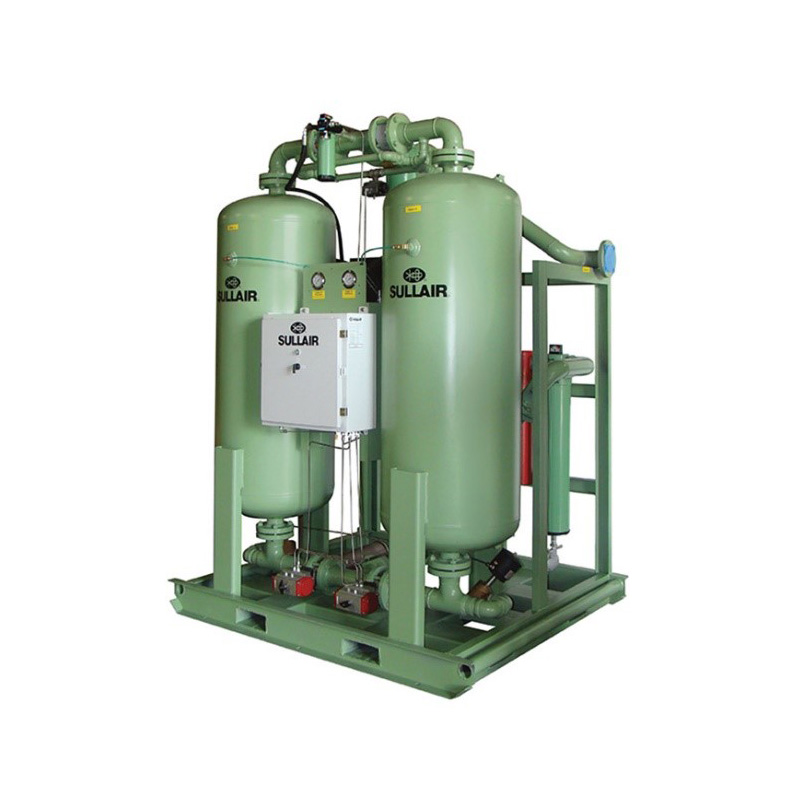

Desiccant Air Dryers
RDHL Desiccant Heatless Series
Rated at -40°F (-40°C) dew point at 100 psig (6.9 bar), these dryers are mounted on draggable skids with air-in, air-out out, and power connections. Their rugged design makes them well-suited for the punishing rental industry. Pre-filter with DP gauge protects desiccant bed from oil and particulate contamination. After-filter with DP gauge removes dust and desiccant fines from the final air system.
- 80 – 10,000 cfm flow range
- Heatless Modular desiccant air dryers from 3 – 240 cfm
- Heatless Twin Tower desiccant air dryers from 80 – 5000 cfm
- Heated desiccant air dryers from 200 – 3500 cfm
- Heated Blower Purge dryers from 500 – 10,000 cfm
- Heat of Compression dryers from 500 – 20,000 cfm
Flow
600-2050 cfm
Pressure
100-175 psi
Customers Also Viewed
Product Documents
Product Details
Information
- 600 to 2050 scfm (17.0 to 58.0 m3/min, 283 to 967 L/s)
- 100 to 175 psig (6.9 to 12.1 bar)
Features
- Rated at -40°F dew point at 100 psig (-40°C dew point at 6.9 bar)
- Dryer mounted on draggable skid with air-in, air-out, and power connections
- Rugged design suited for the rental industry
- Choice of 24 VDC or 115 VAC models
- Mounted pre-filter with DP gauge to protect desiccant bed from oil and particulate contamination
- Mounted after-filter with DP gauge to remove dust and desiccant fines from final air system
- Ball float drain standard on pre-filter
- NEMA 4 electrics for outdoor operation
- Fail-safe valves so flow will not be interrupted should the dryer shutdown
- Maximum operating pressure: 175 psig (12.1 bar)
- ASME VIII coded pressure vessels with 1/16-inch (1.55 mm) corrosion allowance
- High-impact scratch- and corrosion-resistant acrylic polyurethane paint
Products and Features may vary, please contact your local distributor for more information about what is available in your region.
Options
- Pneumatic controls available at an additional charge
- Low ambient option available for below freezing applications
- Four (4) point lifting provisions
