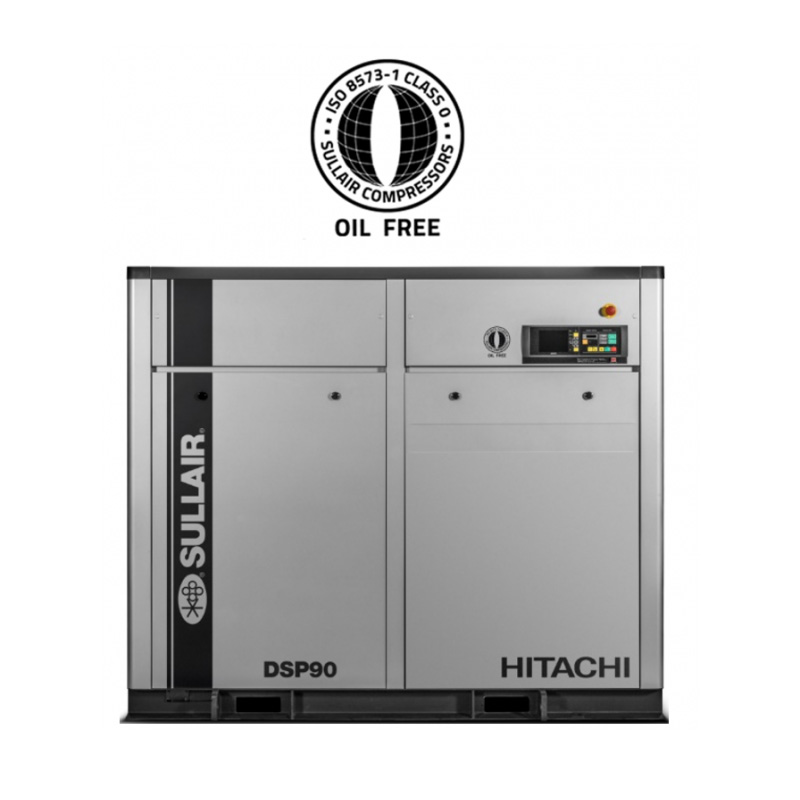

DSP Series Oil Free Rotary Screw Air Compressors
CERTIFIED CLASS 0 Oil FREE AIR. OPTIMIZED FOR ENERGY EFFICIENCY.
The DSP Series brings advanced oil free operations right where it is needed: your facility!
Built on Hitachi engineering, the DSP is designed to supply oil free air reliably and efficiently— today and tomorrow.
- Innovative Air End Design
- Patented Oil Mist Remover
- Motorized Isolation Valve
- 30 – 300 HP, 117 – 1300 cfm, 100 – 145 psig.
- Certified Class 0 Oil Free Air
- Package Designed for Energy Efficiency
- Long Life HX18 PTFE Free Coated Stainless Steel Rotors
- Patented Stainless Steel Precooler
- LCD Monitor Screen
- 3-Year Bumper to Bumper Warranty
- Options: Air Cooled or Water Cooled (60-300 HP)
Variable Speed Drive (50-300HP)
Flow
117 - 1300 cfm
3.3 - 40.5 m³/min
Pressure
100 - 145 psi
6.8 - 10 bar
Power
30 - 300 hp
22 - 240 kw
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
Innovative Air End Design
- Patented taper rotor design optimized for efficiency
- Stainless steel coating robotically applied to rotors in both 1st and 2nd stages provides superior corrosion resistance and durability
- Patented PTFE-free rotary coating designed for long life
- Coating specifically engineered to help ensure rotor tolerances remain consistent — maximizing discharge capacity over the life of the unit
- Stator housing coated to provide additional corrosion protection
Patented Oil Mist Remover
- Environmentally friendly solution to recapture gearcase oil mists
- Helps ensure oil free air compression
- Recycles gearcase oil to reduce oil topoffs needed
- Helps promote a cleaner production environment
Motorized Isolation Valve
- Automatically closes compressed air discharge when DSP shuts off — protecting the compressor from condensate backflow
Package Designed to Optimize Energy Efficiency and Oil Free Operation
- VSD models feature a Patented No Inlet Valve Design
- Eliminates negative pressure at unloading — helping increase shaft seal reliability
- Fixed speed models feature patented 3 or 5 way solenoid valve
- Interstage air purging
- Provides energy savings when unloading
- Patented High Pre-Cooler Design
- Redundant cooler helps prevent thermal fatigue and cooler failure
- Helps reduce moisture content in compressed air
Key Features
- Wye-Delta or VSD Starter
- Phase Monitor
- Altitude Capacity: up to 9000 feet
- Oversized motor options available for peak usage needs
Warranty Information
- All DSP Series Compressors feature a 3 year package warranty
Models & Specs
60 Hz
Fixed Speed
- DSP2209AY – 30 hp (22 kW), 125 psig (8.6 barg), 117 cfm (3.3 m³/min)
- DSP3009AY – 40 hp (30 kW), 125 psig (8.6 barg), 141 cfm (4.0 m³/min)
- DSP3709AY – 50 hp (37 kW), 125 psig (8.6 barg), 166 cfm (4.7 m³/min)
- DSP4509AY – 60 hp (45 kW), 125 psig (8.6 barg), 230 cfm (6.5 m³/min)
- DSP5509AY – 75 hp (55 kW), 125 psig (8.6 barg), 272 cfm (7.7 m³/min)
- DSP7509AY – 100 hp (75 kW), 125 psig (8.6 barg), 392 cfm (11.1 m³/min)
- DSP9009AY – 125 hp (90 kW), 125 psig (8.6 barg), 544 cfm (15.4 m³/min)
- DSP11009AY – 150 hp (110 kW), 125 psig (8.6 barg), 611 cfm (17.3 m³/min)
- DSP13210AY – 175 hp (132 kW), 125 psig (8.6 barg), 742 cfm (21.0 m³/min)
- DSP14510AY – 200 hp (145 kW), 125 psig (8.6 barg), 805 cfm (22.8 m³/min)
- DSP16010AY – 215 hp (160 kW), 125 psig (8.6 barg) 894 cfm (25.3 m³/min)
- DSP20010AY – 250 hp (200 kW), 125 psig (8.6 barg), 1169 cfm (33.1 m³/min)
- DSP24010AY – 300 hp (240 kW), 125 psig (8.6 barg), 1296 cfm (36.7 m³/min)
- DSP4509WY – 60 hp (45 kW), 125 psig (8.6 barg), 236 cfm (6.7 m³/min)
- DSP5509WY – 75 hp (55 kW), 125 psig (8.6 barg), 279 cfm (7.9 m³/min)
- DSP7509WY – 100 hp (75 kW), 125 psig (8.6 barg), 399 cfm (11.3 m³/min)
- DSP9009WY – 125 hp (90 kW), 125 psig (8.6 barg), 551 cfm (15.6 m³/min)
- DSP11009WY – 150 hp (110 kW), 125 psig (8.6 barg), 622 cfm (17.6 m³/min)
- DSP13210WY – 175 hp (132 kW), 125 psig (8.6 barg), 770 cfm (21.8 m³/min)
- DSP14510WY – 200 hp (145 kW), 125 psig (8.6 barg), 837 cfm (23.7 m³/min)
- DSP16010WY – 215 hp (160 kW), 125 psig (8.6 barg), 925 cfm (26.2 m³/min)
- DSP20010WY – 250 hp (200 kW), 125 psig (8.6 barg), 1169 cfm (33.1 m³/min)
- DSP24010WY – 300 hp (240 kW), 125 psig (8.6 barg), 1303 cfm (36.9 m³/min)
60 Hz
Variable Speed
- DSP3709AV – 50 hp (37 kW), 125 psig (8.6 barg), 162 cfm (4.6 m³/min)
- DSP5509AV – 75 hp (55 kW), 125 psig (8.6 barg), 272 cfm (7.7 m³/min)
- DSP7509AV – 100 hp (75 kW),125 psig (8.6 barg), 385 cfm (10.9 m³/min)
- DSP9009AV – 125 hp (90 kW), 125 psig (8.6 barg), 544 cfm (15.4 m³/min)
- DSP11009AV – 150 hp (110 kW), 125 psig (8.6 barg), 611 cfm (17.3 m³/min)
- DSP5509WV – 75 hp (55 kW), 125 psig (8.6 barg), 283 cfm (8.0 m³/min)
- DSP7509WV – 100 hp (75 kW), 125 psig (8.6 barg), 403 cfm (11.4 m³/min)
- DSP9009WV – 125 hp (90 kW), 125 psig (8.6 barg), 551 cfm (15.6 m³/min)
- DSP11009WV -150 hp (110 kW), 125 psig (8.6 barg), 622 cfm (17.6 m³/min)
- DSP16009WV – 215 hp (160 kW), 125 psig (8.6 barg), 925 cfm (26.2 m³/min)
- DSP24009WV – 300 hp (240 kW), 125 psig (8.6 barg), 1303 cfm (36.9 m³/min)
