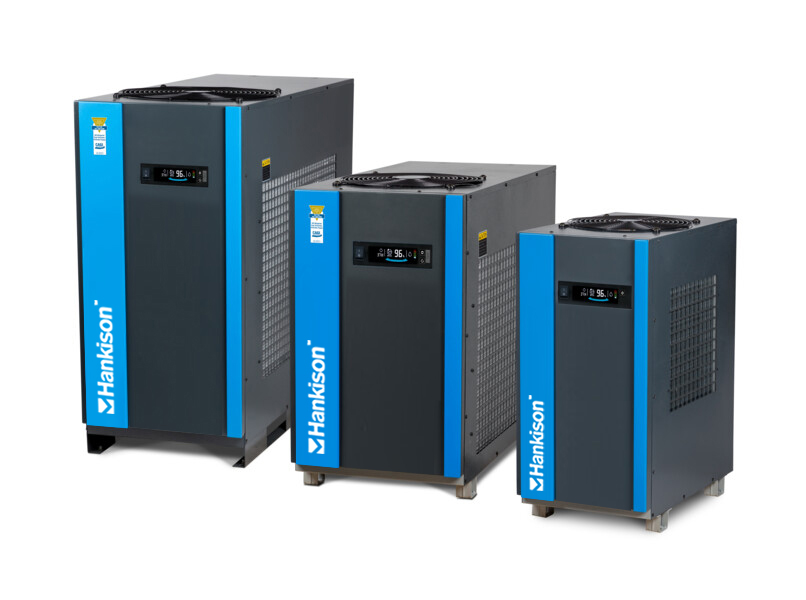

Flex Series Refrigerated Air Dryer
- Flow rates from 75-2000 SCFM
- True Cycling Technology to provide linear energy savings
- Stainless steel brazed plate 3-in-1 heat exchanger (patent pending) with phase change material reservoir
- No-air-loss, demand drain effectively removes condensate without loss of compressed air
- High-efficiency, up-flow aluminum air-cooled condenser
- Reliable, semi-hermetic refrigerant compressors
- Controllers with LCD display to provide ease of monitoring and operating status
- Environmentally-friendly, globally-accepted refrigerants
- 5-Year Extended Warranty Available
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
Energy Saving Sustainability
The FLEX Series lowers air system power costs and improves productivity by matching power consumption to compressed air demand. In a typical manufacturing facility, up to 30% of the electricity consumed is for generating and treating compressed air. To reduce the total cost of operation and qualify for utility company incentive programs, proper air treatment equipment selection and application is required.
Load Matching Performance
Compressed air load profiles in most manufacturing facilities fluctuate. The FLEX Series provides cost-effective energy savings by matching electrical power consumed in direct proportion to air demand. Linear load matching is achieved from 0% up to 100% demand. Non-cycling dryers operate with the refrigeration compressor running continuously, regardless of inlet load conditions. Minimal energy savings are realized from 100% down to 0% inlet air load.
