- 4-21 scfm (100-623 l/min)
- 5-20 HP (3.7-15 kW)

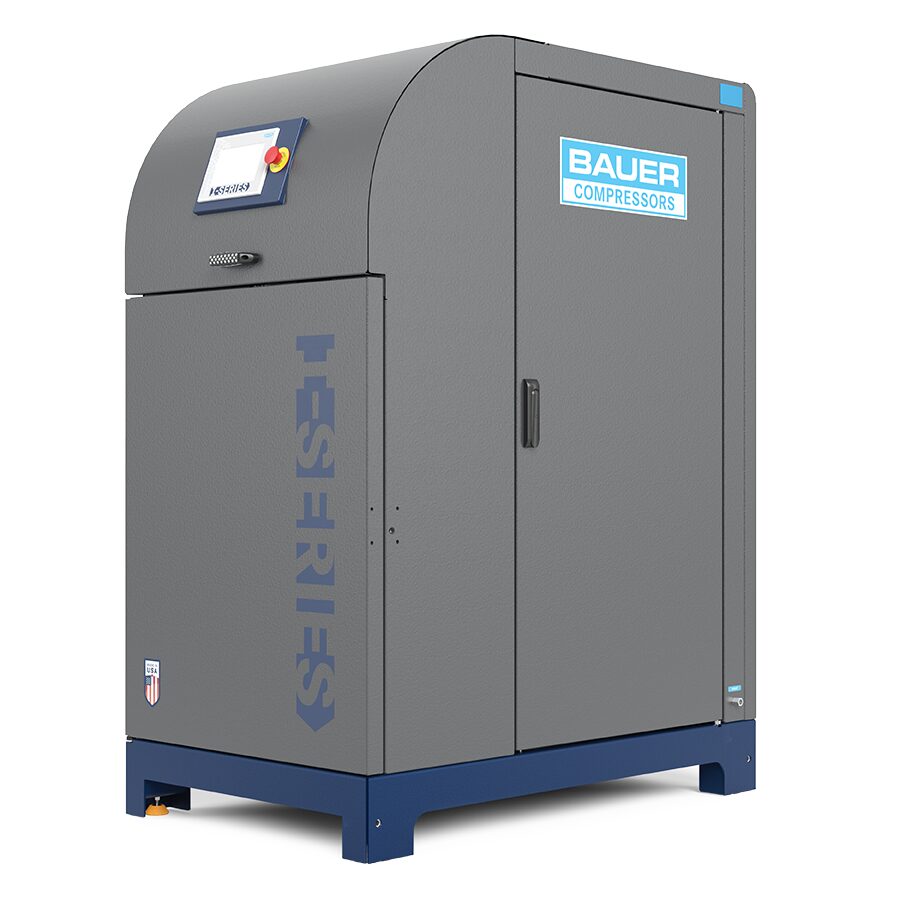

I-SERIES 1 INDUSTRIAL AIR COMPRESSOR
COMPACT DESIGN for LOW-FLOW APPLICATION. AIR-COOLED – 3-, 4-, and 5-Stage COMPRESSOR
The I-Series I, from the technology leader in high-pressure, offers space-saving designs suitable for the most demanding requirements. While the open models offer a budget-conscious practical solution, enclosed models are well suited to occupied spaces.
Flow
4 - 22 scfm
113 - 623 l/min
Power
5 - 20 HP
3.7 - 15 kW
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
- Multi-stage, air-cooled, pressure-lubricated, continuous-duty rated reciprocating compressor
- Electric TEFC motor with v-belt drive, belt guard, and belt tensioning device
- Automatic condensate drain with condensate collector
- Collector includes a switch for high condensate level
- Automatic operation with PLC controller
- Includes operator keypad and text display for operation, maintenance, and troubleshooting
- NEMA 4 rated electrical enclosure with UL listed control panel
- Fused control voltage transformer
- Pressure sensors for oil pressure and final pressure
- Temperature switch
- Emergency stop push button
- Audible alarm
- Ambient temperature range 40˚ F to 113˚ F
- 24-month warranty
Options
I-SERIES 1 (VACI) SPECIFIC
- Sound attenuated enclosure
Models & Specs
5000 PSIG (345 BAR)
- V*CI120
- V*CI150
- V*CI180
6000 PSIG (414 BAR)
- V*CI100H
- V*CI12.14
- V*CI15.112
- V*CI18.12
