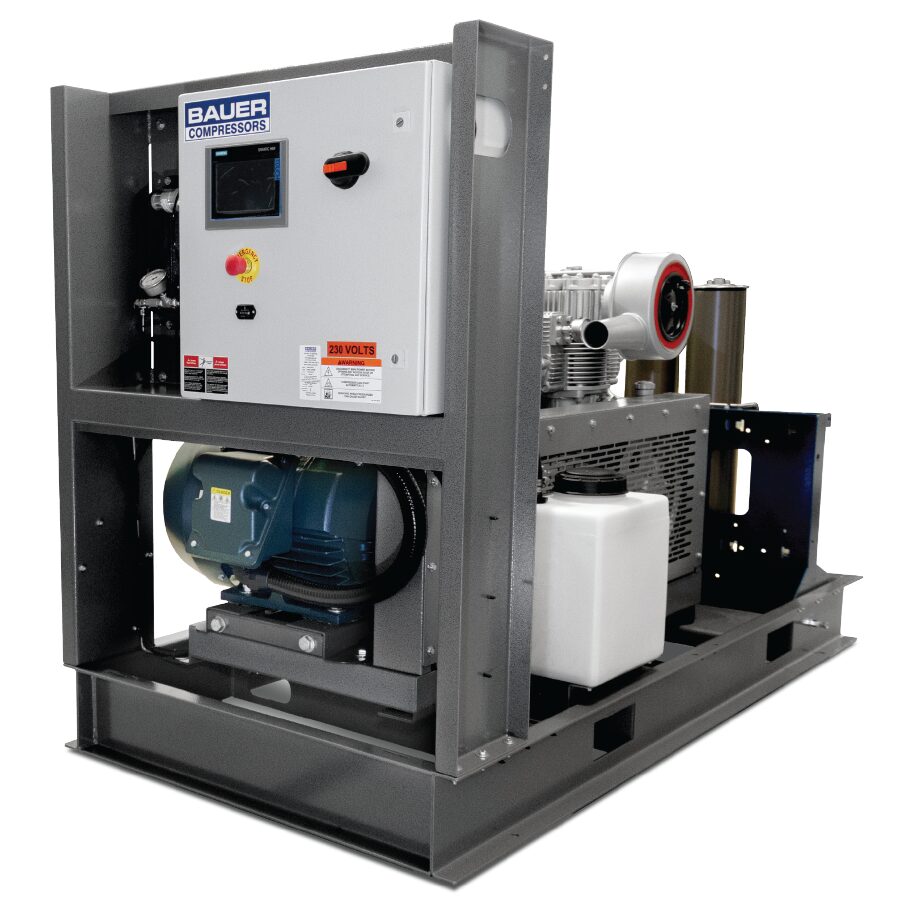

I-SERIES II INDUSTRIAL AIR COMPRESSOR
AIR-COOLED COMPRESSOR DESIGNED FOR HIGH-FLOW APPLICATION
The high capacity range of large volume industrial air compressors, from the technology leader in high-pressure. The BAUER range features continuous-duty rated, multi-stage, air-cooled, pressure-lubricated compressors for the most demanding requirements.
The full-featured control system allows for unattended automatic operation. Heavy-duty frames and balanced compressor designs do not require a special foundation for installation.
- 1000-7000 psi OPERATING PRESSURE
- 25-125 scfm (708-3540 l/min)
- 30-100 HP (22-75 kW)
Flow
25 - 125 scfm
708 - 3400 l/min
Power
25 - 100 HP
18.5 - 75 kW
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
- Multi-stage, air cooled, pressure lubricated, continuous-duty rated reciprocating compressor
- Electric TEFC motor with v-belt drive, belt guard and belt tensioning device
- Automatic condensate drain with condensate collector
- Collector includes switch for high condensate level
- Automatic operation with PLC controller
- Includes operator keypad and text display for operation, maintenance and troubleshooting
- NEMA 4 rated electrical enclosure with UL listed control panel
- Fused control voltage transformer
- Hour meter and temperature switch
- Pressure sensors for oil pressure and final pressure
- Emergency stop push button and audible alarm
- Ambient temperature range 40˚ F to 113˚ F
- 24 month warranty
- Soft starter
- Circuit breaker disconnect
Options
AVAILABLE ACCESSORIES
- Enclosure
- BAUER air purification system with SECURUS
- Refrigerant Dryer
- Adsorption Dryer
- Water and Air Separator
30-100 HP MODELS
- Soft starter
- Fused disconnect
Models & Specs
5000 PSIG (345 BAR)
- I220
- I230
- I250
- I280
6000 (414 bar)
- I22.42
- I25.92
- I25.182
