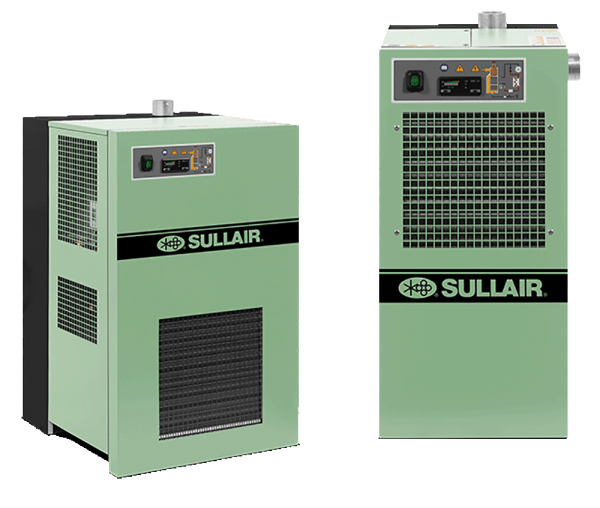

Non-Cycling Refrigerated Compressed Air Dryers
- ENERGY-SAVING TECHNOLOGY MEETS STABLE DEW POINT
- Sullair Non-Cycling Refrigerated Compressed Air Dryers focus on efficient design, energy-saving technology and stable point in all operating conditions.
- 10 – 10,000 cfm flow range (depending on model)
- Unique Aluminum heat exchanger designed for minimum pressure drop, maximum efficiency, and gravitational self-cleaning
- Hot gas bypass valve for stable dew point in all operating conditions
- Integrated SULLIMAX™ drain for most models for reliable condensate discharge and maximum energy savings
- Oversized condensers and smaller compressors
- Easy to open panels for access for servicing the unit
- Available in Model SR, SR+, and SRHT High Inlet Temperature
Flow
10 - 10,000 cfm
.28 - 283.2 m³/min
Pressure
200 - 232 psi
13.8 - 16.0 bar
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
- Unique heat exchanger designed for minimum pressure drop and gravitational self-cleaning
- Hot gas bypass designed for stable dew point in all operating conditions
- Integrated SULLIMAX drain for reliable condensate discharge and maximum energy savings*
- Energy-saving technology
- Oversized condensers
- Smaller high-performance compressors
- Easy-open panels providing simplified access for routine maintenance and service
*Optional on SR models
Options
SR Series
- SULLIMAX™ Condensate Drain
SR+ Series
- PC Connection Kit**
SRHT Series
- Timer Solenoid Condensate Drain
**Available on SR+ models 600 scfm and up
Models & Specs
SR Series
- Flow Rates scfm: 10 – 480
- Max Inlet Air Temperature °F: 130
- Max Inlet Operating Pressure psig
- SR 10 – 50: 232
- SR 75 – 480: 200
- Standard Outlet Pressure Dew Point °F: 37 – 41
- ISO 8573—1:2010 Air Quality Class: Class 4 – 5
SR+ Series
- Flow Rates scfm: 20 – 10,000
- Max Inlet Air Temperature °F: 160
- Max Inlet Operating Pressure psig
- SR+ 20 – 50: 232
- SR+ 75 – 10,000: 200
- Standard Outlet Pressure Dew Point °F: 37 – 38
- ISO 8573—1:2010 Air Quality Class: Class 4 – 5
SRHT Series
- Flow Rates scfm: 20 – 350
- Max Inlet Air Temperature °F: 210
- Max Inlet Operating Pressure psig: 200
- Standard Outlet Pressure Dew Point °F: 45 – 50
- ISO 8573—1:2010 Air Quality Class: Class 5 – 6
