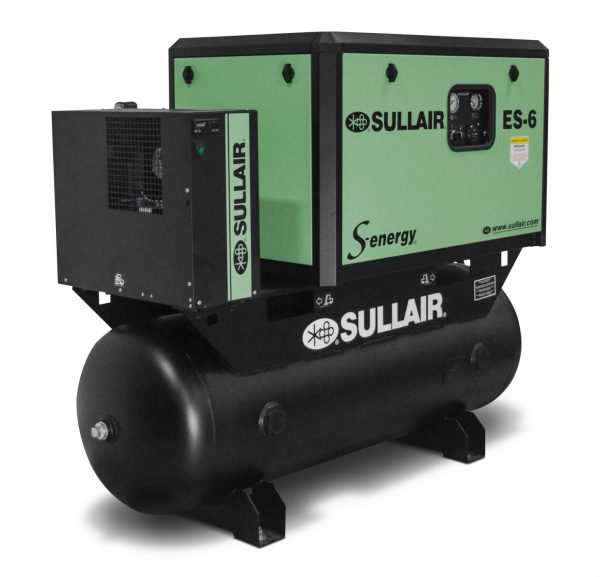

S-Energy ES-6 Rotary Screw Air Compressors
SUPERIOR FEATURES & BENEFITS
Sullair ES-6 S-energy® encapsulated compressors utilize design simplicity to provide exceptional reliability and extremely low maintenance.
- Reliable Sullair Air End
- Simple, compact design–40% fewer parts than conventional models
- Lower maintenance costs
- 5 – 10 HP 13 – 36 cfm, 125 – 175 psig.
- Encapsulated Design, Compact & Robust
- Energy Efficient Design
- Gauge Instrumentation Package
- Legendary Sullair Air End
- 10-Year Air End Warranty
- 5-Year Warranty covering the motor, coolers, and air/fluid vessel
- 10,000-hour Genuine Sullube factory fill lubricant
- Standard Features: TEAO motors, Full Voltage Starter, Hour Meter, NEMA 1 Electricals
- Options Include Tank Mounted, Air Dryer/Prefilter Mounted on Tank, Sound Attenuated Enclosure
Flow
13 – 36 cfm
.36-1.01 m³/min
Pressure
125 – 175 psi
9 - 12 bar
Power
5 – 10 hp
4.8 - 9.6 kW
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
- Superior Package Design
- 40% fewer parts improve reliability
- Small footprint
- Designed for continuous duty
Reliable Sullair Air End
- Patented E-profile rotor design
- Longer bearing life
Helical Design Drive Gears
- Reduces thrust load
- Increases bearing life
Bearing Fluid Reservoirs
- Ensures fluid is available at start-up
- Extends air end life
Flange-Mounted Motor and Air End
- Provides positive alignment
- Optimizes bearing life of air end and motor
- Motor enclosure is Totally Enclosed Air Over (TEAO)
- Available voltages include 200V, 230V, 460V and 575V
Factory filled with biodegradable Genuine Sullube® 10,000 hour fluid
- Protects and cleans (no varnish)
- Controls operating temperatures
- Optimal viscosity
- Environmentally friendly
- Reduces fluid loss
- High flash point (263˚C)
Options
- Optional Sound Enclosure
- Reduces sound levels to 68 dBA
- Lift out doors
PristineFG™
- Meets USDA and FDA H1 requirements
- Lasts up to 6000 hours
- Reduces lubricant consumption
- Performs in wide temperature range
- Extends compressor life
Performance Air System
- Receiver tank
- Matched compressed air dryer
- High efficiency filter
Models & Specs
Available models
- 5H—5 hp (3.7 kW), 17 acfm (.48 m³/min), 125 (9 bar)
- 5XH—5 hp (3.7 kW), 13 acfm (.36 m³/min), 175 (12 bar)
- 7.5H—7.5 hp (5.5 kW), 28 acfm (.79 m³/min), 125 (9 bar)
- 7.5XH—7.5 hp (5.5 kW), 20 acfm (.56 m³/min), 175 (12 bar)
- 10H—10 hp (7.4 kW), 36 acfm (1.01 m³/min), 125 (9 bar)
- 10XH—10 hp (7.4 kW), 30 acfm (.84 m³/min), 175 (12 bar)
