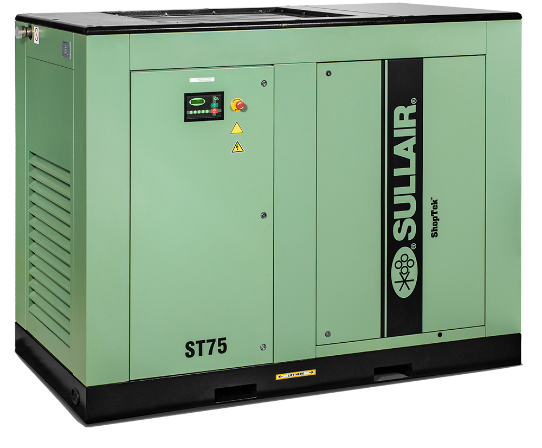

Shoptek ST18 – 75 Rotary Screw Air Compressors
HIGHER THAN INDUSTRY STANDARD
Sullair ShopTek® redefine industry standards with a simple design providing exceptional reliability and extremely low maintenance.
- Reliable Sullair Air End
- Small Footprint
- Energy-Efficient Design
- 25 – 100 HP, 103 – 438 cfm, 115 – 125 psig.
- Simple, Compact Design, Small Footprint
- Intelligent Electronic Controls
- Energy Efficient Design
- Legendary Sullair Air End
- 5-Year Emerald Warranty covering the air end, motor, coolers, and air/fluid vessel
- 10,000-hour Genuine Sullube factory fill lubricant
- Standard Features: ODP motors, Wye-Delta Starters, Sound Attenuated Enclosure
Flow
103 - 443 cfm
2.9 - 12.4 m³/min
Pressure
115 - 125 psi
8 - 8.6 bar
Power
25 - 100 hp
18 - 75 kw
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
- Simple, complex design
- Small Footprint
- Reliable Sullair Air End
- Patented rotor design
- Bearing fluid reservoirs
- Long life bearings
- Sound enclosure for quiet operation
- Reduces sound levels to as low as 75 dBA
- Easily removable for service
- Intelligent Electronic Controls
- Latest technology mircoprocessor controller to ensure uniform operation and uninterrupted production
- Deluxe monitoring
- All essential parameters conveniently displayed on controller
- Transducer control pressure to minimize off-load running and reduce over-compression
- Energy efficient features
- Premium efficient IEC motors standard
- 10,000-hour Genuine Sullube® factory fill
- 5-year Emerald Warranty
- Coverage on major components included air end, air/fluid, main drive motor, fluid cooler and aftercooler
Models & Specs
- ST1808 — 25 hp (18 kW), 103 acfm* (2.9 m³/min), 115 psi (8 bar)
- ST2208 — 30 hp (22 kW), 127 acfm* (3.6 m³/min), 115 psi (8 bar)
- ST3008 — 40 hp (30 kW), 160 acfm* (4.6 m³/min), 115 psi (8 bar)
- ST3708 — 50 hp (37 kW), 219 acfm* (6.2 m³/min), 115 psi (8 bar)
- ST4509 — 60 hp (45 kW), 278 acfm* (7.87 m³/min), 125 psi (8.6 bar)
- ST5509 — 75 hp (55 kW), 341 acfm* (9.65 m³/min), 125 psi (8.6 bar)
- ST7509 — 100 hp (75 kW), 438 acfm* (12.4 m³/min), 125 psi (8.6 bar)
Additional Configurations** — 60 Hz (Latin America & EMEA Only)
- ST4508 — 60 hp (45 kW), 280 acfm* (7.93 m³/min), 115 psi (8 bar)
- ST5509 — 75 hp (55 kW), 348 acfm* (9.85 m³/min), 115 psi (8 bar)
- ST7509 — 100 hp (75 kW), 443 acfm* (12.55 m³/min), 115 psi (8 bar)
*acfm measured in accordance with ISO1217, Annex C
**Not available in all regions
