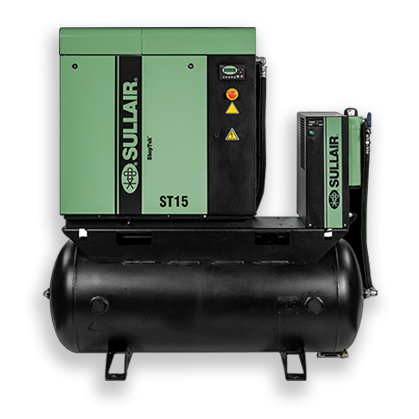

Shoptek ST4 – 15 Rotary Screw Air Compressors
HIGHER THAN INDUSTRY STANDARD
Sullair ShopTek® redefine industry standards with a simple design providing exceptional reliability and extremely low maintenance.
- Reliable Sullair Air End
- Small Footprint
- Energy-Efficient Design
- 5 – 20 HP, 16 – 80.1 cfm, 100 – 175 psig.
- Simple, Compact Design, Small Footprint
- Intelligent Electronic Controls
- Energy Efficient Design
- Legendary Sullair Air End
- 5-Year Emerald Warranty covering the air end, motor, coolers, and air/fluid vessel
- 10,000-hour Genuine Sullube factory fill lubricant
- Standard Features: TEFC motors, Full Voltage Starters, Sound Attenuated Enclosure
- Options Include Single Phase models in 5, 7.5, & 10 HP, Matching air dryers, Filters, Receiver Tanks.
Flow
16 - 81 cfm
.47 - 2.2 m³/min
Pressure
125 - 175 psi
9 - 12 bar
Power
5 - 20 hp
4 - 15 kw
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
- Simple, complex design
- Small Footprint
- Reliable Sullair Air End
- Patented rotor design
- Bearing fluid reservoirs
- Long life bearings
- Sound enclosure for quiet operation
- Reduces sound levels to as low as 66 dBA
- Easily removable for service
- Intelligent Electronic Controls
- Latest technology mircoprocessor controller to ensure uniform operation and uninterrupted production
- Deluxe monitoring
- All essential parameters conveniently displayed on controller
- Transducer control pressure to minimize off-load running and reduce over-compression
- Energy efficient features
- Premium efficient IEC motors standard
- Voltages: 208-230/460V/3PH/60Hz
- Single phase models available in 5, 7.5 and 10 hp
- Premium efficient IEC motors standard
- 10,000-hour Genuine Sullube® factory fill
- 5-year Emerald Warranty
- Coverage on major components included air end, air/fluid, main drive motor, fluid cooler and aftercooler
Options
- Single phase models available in 5, 7.5 and 10 hp
- Performance air system
- Matching dryers
- Filters
- Receiver tanks
Models & Specs
- ST410 — 5 hp (4 kW), 16 acfm* (0.47 m³/min), 150 psi (10 bar)
- ST510 — 7.5 hp (5 kW), 26.5 acfm* (0.76 m³/min), 150 psi (10 bar)
- ST709 — 10 hp (7.5 kW), 35.5 acfm* (1.06 m³/min), 125 psi (9 bar)
- ST712 — 10 hp (7.5 kW), 30.1 acfm* (0.89 m³/min), 175 psi (12 bar)
- ST1109 — 15 hp (11 kW), 63.5 acfm* (1.8 m³/min), 125 psi (9 bar)
- ST1112 — 15 hp (11 kW), 46.5 acfm* (1.26 m³/min), 175 psi (12 bar)
- ST1509 — 20 hp (15 kW), 80.1 acfm* (2.2 m³/min), 125 psi (9 bar)
- ST1512 — 20 hp (15 kW), 62 acfm* (1.7 m³/min), 175 psi (12 bar)
*acfm measured in accordance with ISO1217, Annex C
