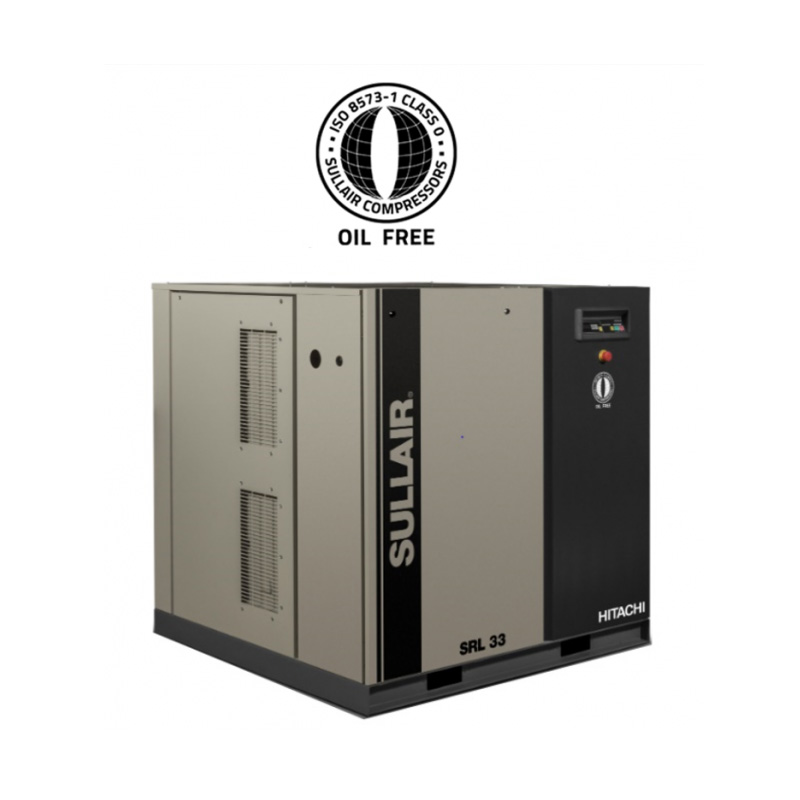

SRL Series Oil Free Scroll Air Compressors
OIL FREE AIR RELIABLY, EFFICIENTLY AND QUIETLY
Built on Hitachi engineering, the SRL Series represents advanced scroll compressor technology to meet your oil free compressed air needs — today and tomorrow.
Maximizing efficiency means more than just having an efficient air compressor. All SRL Series compressors feature built-in logic to help utilize the air compressors most efficiently — which not only saves wear and tear on the compressor, but also provides energy savings — which saves you money!
- Certified Class 0 Oil Free Air
- SRL Exclusive Scroll and Pump Design
- Extremely Quiet Operation — as low as 48 dB(A)
- 2 – 44 HP, 5 – 130 cfm, 100– 145 psig.
- Energy Efficient Design
- Patented scroll wrap design with labyrinth seal provides superior performance and reliability
- Integrated design includes highly efficient cooling, receiver tank to help dissipate heat while reducing compressor start/stops
- Normal Maintenance can be performed without disassembling pump
- 3-Year Bumper to Bumper Warranty
- Options include: simplex, duplex, triplex, etc. packages
5 - 130 cfm
.16 - 3.66 m³/min
100 - 145 psig
8.3 - 10 bar
2 - 44 hp
1.5 - 33 kW
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
SRL Exclusive Scroll and Pump Design
- Patented scroll wrap design with labyrinth seal provides superior performance and reliability
- Proprietary tip seal reduces air leakage while extending service intervals
- Normal maintenance can be completed without disassembling pump
Integrated Design for Maximum User Benefits
- Certified Class 0 oil free air
- Highly efficient cooling
- Multi stage cooling reduces ambient temperature out
- Receiver tank helps dissipate heat while reducing compressor starts/stops
- Air pressures to 145 psig
- Extremely quiet
- Sound levels as low as 48 dB(A)
- Full enclosure standard
- Mechanical and electrical vibration isolation
- Designed to be placed at point of air need
- Compact design reduces floor space needed
- Maintenance friendly
- Easy accessibility for inspection and maintenance
Options
- 8 bar and 10 bar options
- Wide Range of Accessories
- Dryers and Filters
Models & Specs
Simplex
- SRL1.5 – 2 hp (1.5 kW), 120 psi, 5.7 cfm*
- SRL2.2 – 3 hp (2.2 kW), 120 – 145 psi, 8.5 cfm*
- SRL3.7 – 5 hp (3.7 kW), 120 psi, 14.1 cfm*
- SRL5.5 – 7.5 hp (5.5 kW), 120 – 145 psi, 21.2 cfm*
Multiplex
- SRL7.5 – 10 hp (7.5 kW), 122 – 145 psi, 30.2 cfm*
- SRL11 – 15 hp (11 kW), 122 – 145 psi, 43.1 cfm*
- SRL16.5 – 22 hp (16.5 kW), 122 – 145 psi, 64.6 cfm*
- SRL22 – 30 hp (22 kW), 122 – 145 psi, 86.2 cfm*
- SRL33 – 44 hp (33 kW), 122 – 145 psi, 129.3 cfm*
*cfm at lowest pressure rating
Original products designed by Hitachi Industrial Equipment Systems Co., Ltd
