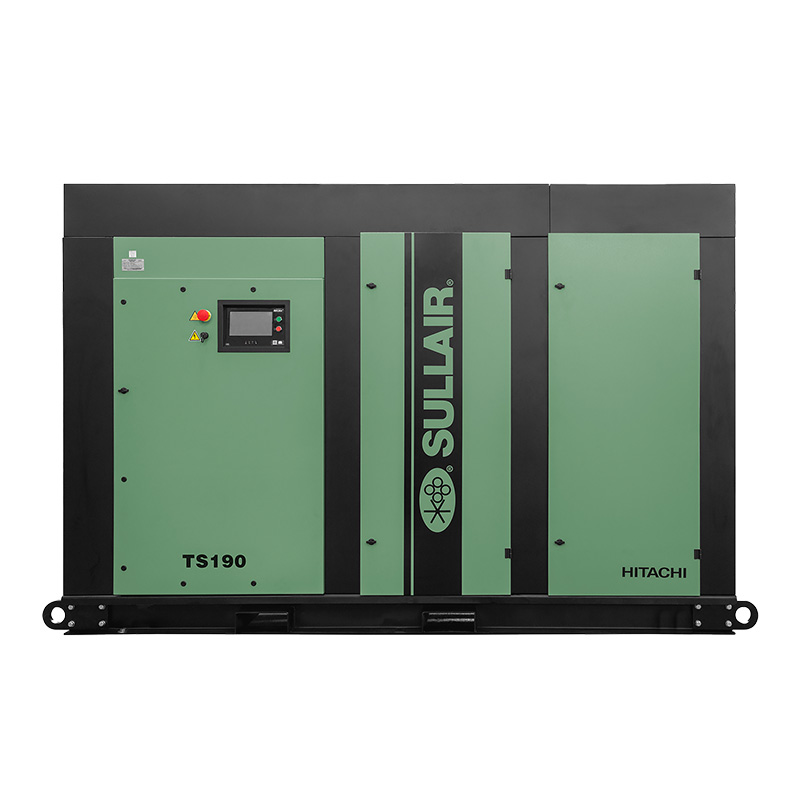

TS-SERIES (250-350 HP) TWO STAGE ROTARY SCREW COMPRESSORS
TS SERIES — DOUBLING DOWN ON EFFICIENCY
Expect big energy savings with Sullair TS Series Two-Stage Rotary Screw Air Compressors. Our engineers looked at increasing efficiency with an intense level of detail and it paid off.
- Best-in-Class Efficiency* — the most efficient Sullair compressor ever
- Ease of Service & Use
- Legendary Sullair Durability
Built on the platform of Sullair LS Series Single-Stage Rotary Screw Air Compressors—which completely changed the game and have been in high demand since 2017 — the Sullair TS Series takes the proven performance and revolutionary package design into two-stage compression.
Flow
994 – 2033 cfm
28.2 - 57.6 m³/min
Power
250 - 350 hp
190 - 260 kW
Customers Also Viewed
-
SN5500-7500S (75-100 hp) Rotary Screw Compressors
View Product -
F-Series Oil Free Centrifugal Air Compressors
2300 – 20,000 HP, 12,000 – 118,000 cfmView Product -
S-ENERGY 1800-3000V (25-40 HP) ROTARY SCREW AIR COMPRESSORS
View Product -
DSP Series Oil Free Rotary Screw Air Compressors
30 – 300 HP, 117 – 1430 cfmView Product
Product Documents
Product Details
Features & Benefits
- Best-in-class airflow performance by allowing more cooling time between stages without introducing pressure drop
- Smaller/lighter
- Patent-pending interstage cooling for maximum efficiency
- Lowers air temperature 12 – 15° between first and second stages
- Threaded discharge valve
- Minimizes restriction area for lower pressure drop
- Legendary Sullair rotors with high-efficiency bearings
- 321 mm in first stage
- 230 mm in second stage
- Independent gear ratios for first and second stages allow more precision and higher efficiency across multiple pressure ratios
- More balanced workload between first and second stages
- Speed control for each stage
- Internal lubricant passages
- All O-ring seals to help minimize leakage
Models & Specs
- TS190
- TS190S
- TS190V
- TS220
- TS220S
- TS220V
- TS260
- TS260S
- TS260V
