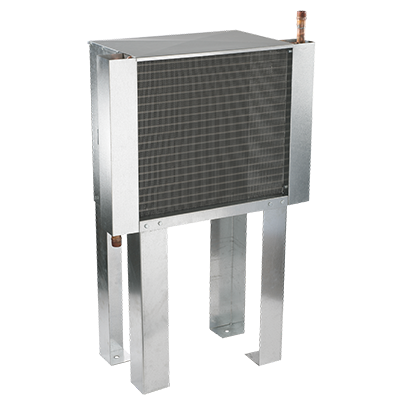

TTP AA Series – Air Cooled
The AA Series accommodates a medium performing range in numerous common compressor applications. The copper tube construction offers a high efficiency, high performing compressed air cooler in a galvanized steel cabinet. The series features six models with flow capacities from 16-480 SCFM (.45-13.6 SCMM) to be used on compressors from 5-60 HP (3.7-44.7 KW). This free-standing cooler can be ordered with a weather proof junction box and wired for a single point electrical connection. This series should be used for new applications.
- This series features 6 models with flow capacities from 16-480 SCFM
- Materials
- Cabinet – Galvanized Steel
- Core – Aluminum fins on copper tubes
- Fan – Heavy gauge aluminum with steel hub
- Maximum Operating Pressure – 250 PSI
- Maximum Operating Temperature – 350°F
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
- Full line of sizes and features
- Energy efficient
- High performance
- Medium flows 80-300 CFM
- Horizontal air flow
- Floor or suspended mounting
- Wired for single point external connection
- Detachable legs (shipped unattached)
Options
- Weatherproof junction box
- TEFC motor(s)
Materials
- Cabinet – Galvanized steel
- Core – Aluminum fins on copper tubes
- Fan – Heavy gauge aluminum with steel hub
- Motor – Open vented
- Fan Guard – Steel with baked enamel finish
