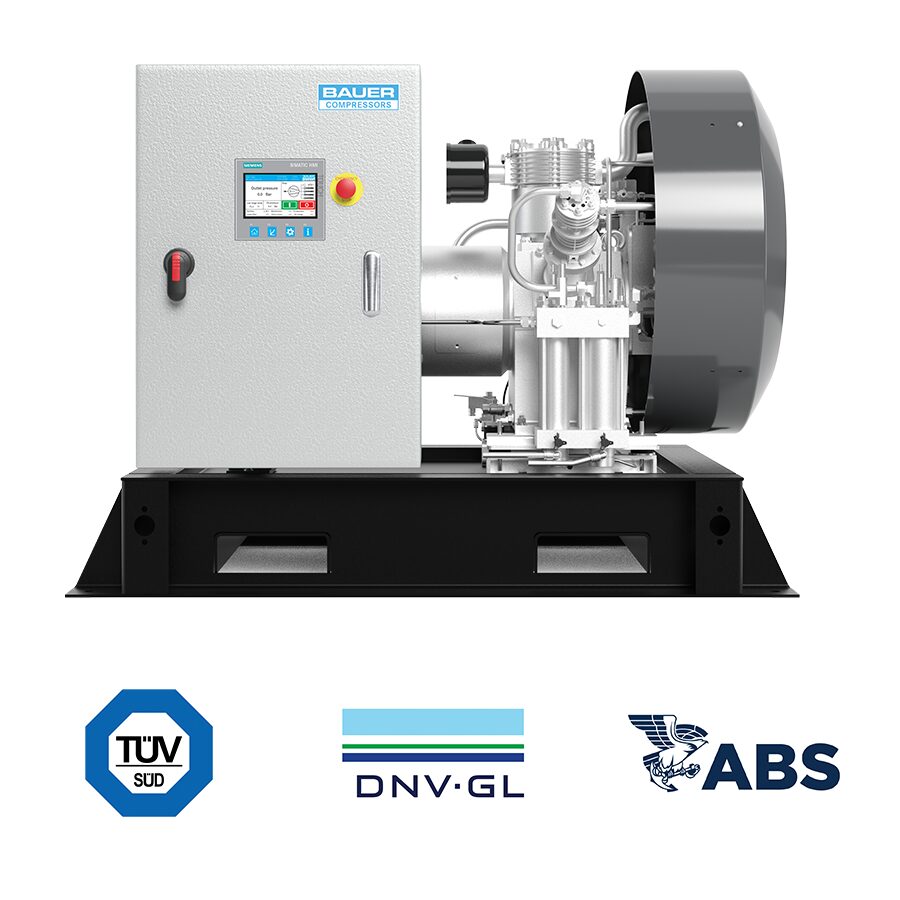

BAUER BMP™ SERIES
MEDIUM-PRESSURE AIR COMPRESSORS
For 75 years, BAUER has been the world’s leader in high-pressure compressors ranging from 3600-7000 psig. We are proud to announce the arrival of our medium-pressure BAUER BMP™ Series air compressors designed for continuous, heavy-duty applications in the Industrial, Maritime, and Hydropower market segments.
Flow
27-175 SCFM
Final Pressure
up to 1450 PSIG
Power
20-125 HP
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
- The Compact design makes the BMP™ Series ideal for operations where space is at a premium.
- A low center of gravity with the ability to operate at inclinations up to 30° under motion makes this an ideal product for shipboard applications.
- An integrated oil pump provides forced lubrication to all essential components of the compressor under the most severe operating conditions, thus extending the life of all critical components such as cylinders, pistons, and valves.
- Air-cooled design with a large cooling fan provides optimal cooling across all cylinders in high-temperature conditions.
- All compression stages are protected with integrated inter-stage safety valves.
- Integral inter-stage separators ensure 99% efficiency of condensate removal.
- Automatic condensate drains with condensate collection provide worry-free operation.
- PLC control with touchscreen HMI provides ease of operation as well as a comprehensive system overview and ease of parameter setting.
- Heavy-duty skid with integrated fork-lift pockets and structural tie-downs
- Interstage pressure and temperature monitoring
- Integrated oil containment pan with drain valve
- BAUER CONNECT® remote control and IoT
Codes and Specifications
Operating temperature range:
- 40° F – 113°F (5° C – 45°C)
Electrical Code:
- UL / NEC
Power:
- 460 volts, 60 Hz, 3-phase
Models & Specs
Medium Pressure Series: 2-Stage Compression up to 435 PSIG (30barg) 60Hz
- BMP6.1/30-15
- BMP10.1/30-18.5
Medium Pressure Series: 3-Stage Compression up to 580 PSIG (40barg) 60Hz
- BMP6.1/40-15
- BMP10.1/40-18.5
- BMP20.1/40-37
- BMP30.1/40-55
- BMP60.1/40-75
Medium Pressure Series: 3-Stage Compression up to 1450 PSIG (100barg)
- BMP6.1/100-15
- BMP10.1/100-22
- BMP20.1/100-45
- BMP30.1/100-75
- BMP60.1/80-90
