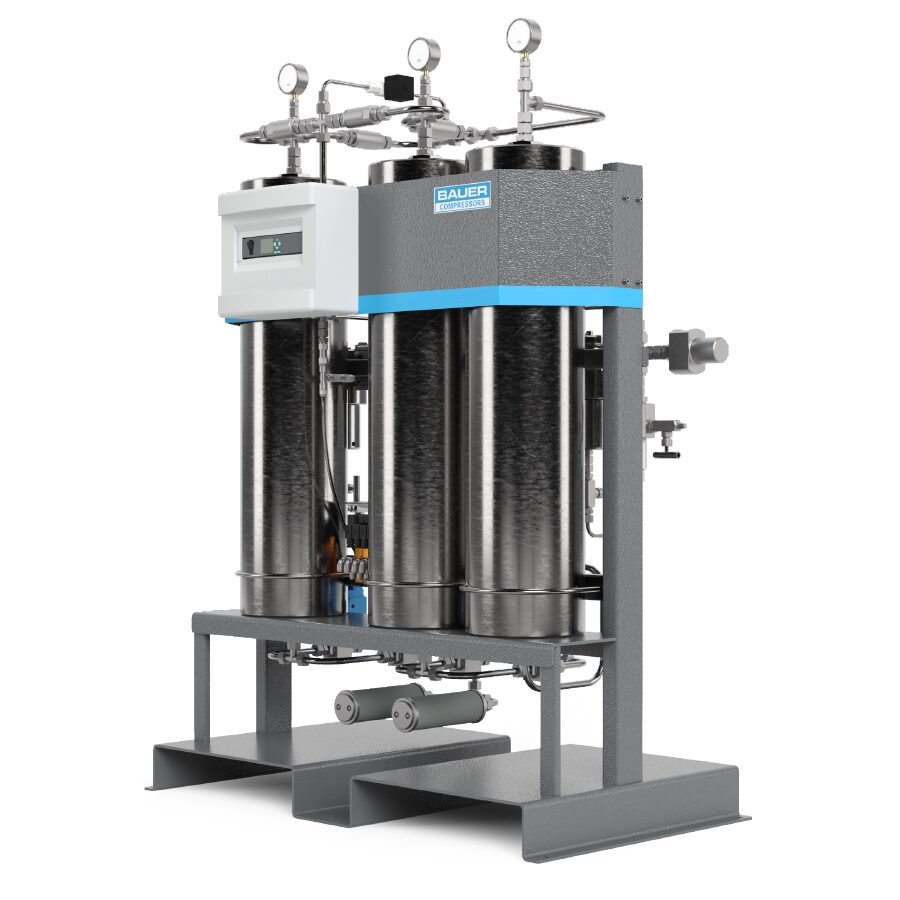

REGENERATIVE ADSORPTION DRYER
BAUER SECCANT adsorption dryers have been designed for continuous separation of water vapor from compressed air, thus reducing the dew point. Operation of the dryer requires two columns to operate alternatively. Adsorption takes place under pressure in the first column while the second column regenerates with a portion of the already-dried compressed air at ambient pressure. The robust design enables efficient and reliable operation, fast installation, and simple maintenance.
PRESSURE:
- Up to 6000 PSIG (414 BAR)
OPERATING TEMPERATURE:
- 34.7° F to 122° F (1.5°C to 50°C)
VOLTAGE, FREQUENCY:
- 230 V, 50/60 Hz
Up to 6000 PSIG (414 BAR)
34.7° F to 122° F (1.5°C to 50°C)
230 V, 50/60 Hz
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
- 2 drying filters with molecular sieve
- 3 × Pre-filter (with automatic condensate drain) and 1 × after filter (PX-filter)
- Automatic switchover device with pressure compensation
- Solenoid valves, pressure gauge
- Silencer for noise reduction at the regeneration air outlet
- Electronic control Siemens Logo
- Power supply: 230 V, 50/60 Hz
- Pressure vessel with activated carbon for oil removal (option)
Options
Oil removal
- Additional pressure vessel with activated carbon to remove hydrocarbons (oil vapor) from the dried air
Dew point sensor
- Dew point sensor with measurement chamber
Interface module plus
- Modbus TCP/IP, Profinet TCP/IP, Web service access, and 4-20 mA output of the dew point sensor (only in combination with an added dew point sensor)
Start-up device (Pressure maintaining valve)*
- 3/8“ (refer to outlet connection dryer)
- 1/2” (refer to outlet connection dryer)
Safety valve
- To be mounted on site upstream of the SECCANT, if not already present (e.g., on the compressor)
*Recommended option to provide minimum operating pressure inside the dryer. Otherwise, in case of lower pressure downstream, the dryer can not reach the confined air/gas quality.
Models & Specs
- SECCANT 055/50
- SECCANT 110/50
- SECCANT 165/50
- SECCANT 275/50
- SECCANT 385/50
- SECCANT 550/50
- SECCANT 715/50
