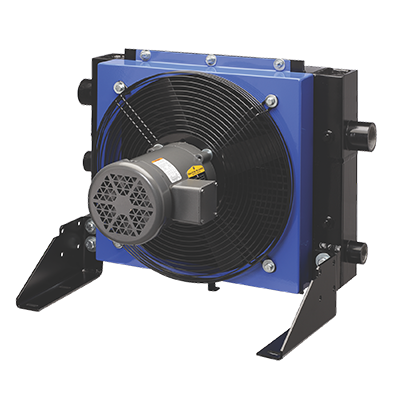

TTP ACOC/ACOCH Air Cooled
The ACOC/ACOCH Series offers the best of both worlds in one compact, side by side, combination package. The design features rugged brazed aluminum bar & plate construction with detachable legs for ease of mounting. In a single combined core, the high-performing unit cools rotary screw compressor oil and compressed air. The compact design makes this unit ideal for field conversions, stringent space requirements and remote location mounting. The series includes fifteen models with flow capacities from 175-1800 SCFM (4.96-50.97 SCMM) to be used on compressors from 15-360 HP (11.2-268.5 KW).
- This series features 15 models with flow capacities from 175-1800 SCFM
- Materials
- Legs – Steel with baked enamel finish
- Core – brazed aluminum bar and plate
- Fan – Aluminum hub, plastic blades
- Maximum Operating Pressure – 250 PSI
- Maximum Operating Temperature – 350°F
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
- Combination welded cores – air & oil core
- Brazed aluminum core/bar and plate
- Excellent for field conversions
- Vertical air flow
- Compact design
- Light weight
- Compact, high performance all aluminum core assembly
- Designed specifically for rotary screw compressors
- Ideal for converting water cooled units to air cooled
- Eliminates high water and sewer costs
- Eliminates corrosion problems associated with water cooled units
- Excellent for heat recovery
- State-of-the-art heat transfer technology
- Detachable legs on ACOC (shipped unattached). Fixed mounting feet on ACOCH
- CRN available
Ratings
- Maximum Operating Pressure 250 PSI
- Maximum Operating Temperature 350°F
Materials
- Legs – Steel with baked enamel finish
- Shroud – Steel
- Core – Brazed aluminum bar and plate
- Fan – Aluminum hub, plastic blades
- Motor – TEFC
