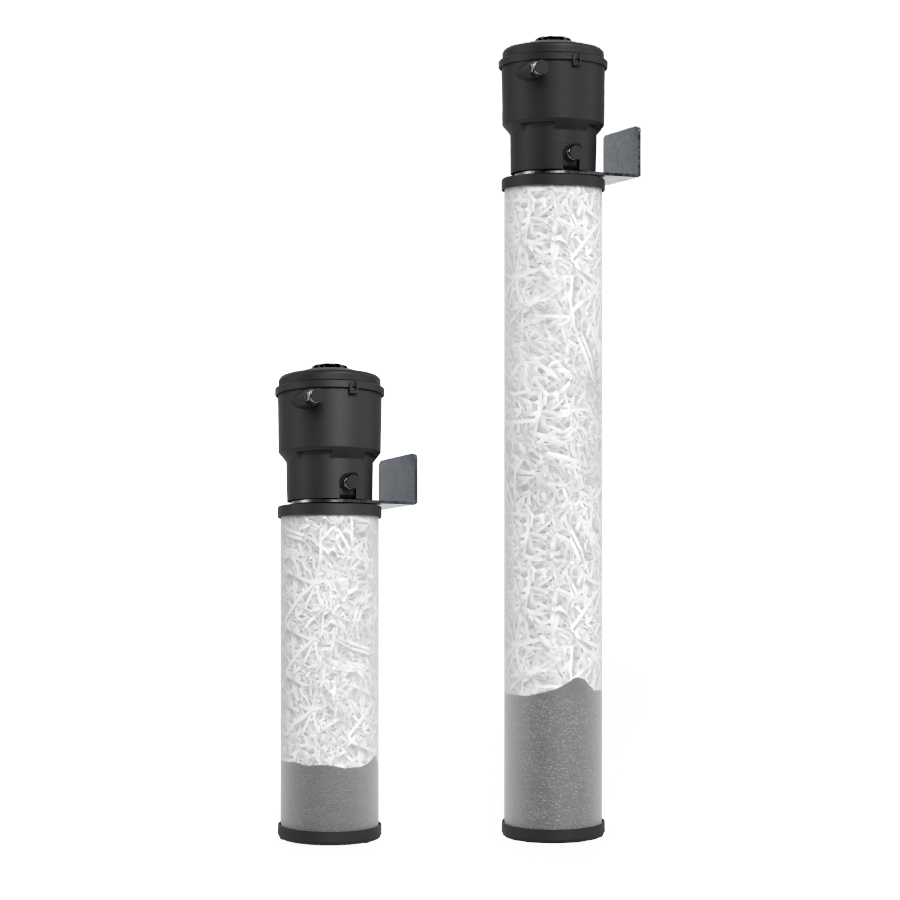

WOS m SERIES (CONDENSATE WATER-OIL SEPARATORS)
WOSm water oil separators have been specifically developed to separate lubricant oil from condensate generated in compressed air systems. Due to patented technology, regular service can be done in 30 seconds without cleaning. Separation begins in the cyclonic depressurization chamber and continues in the filter cartridge. When the filter cartridge is fully saturated, you unscrew the complete cartridge and replace it with a new one. All oil from condensate stays in the cartridge, and all remaining condensate can be drained into sewage while complying with the environmental laws. Worn cartridges can be sealed with a plastic cover and disposed of according to local directives and laws.
Residual oil content:
- Less than 20ppm
Customers Also Viewed
Product Documents
Product Details
Features & Benefits
Operating temperature:
- 35 – 113°F (max. 149°F)1
- (1.5 – 45°C (max 65°C))
Operating media:
- Condensate (air, water, oil)
- Non-aggressive
- Not suitable for emulsion
(1) Max. operating temperature is 65°C, but when temperature is over 45°C, performance may decrease.
Specifications
HOUSING FOOTPRINT
WOSm1: DIMENSIONS H X W X C X D X E inches (mm)
- 19” x 4.17” x 3.15” x 13.2” x 1.97” (483mm x 106mm x 80mm x 335mm x 50mm)
WOSm2: DIMENSIONS H X W X C X D X E inches (mm)
- 13.5” x 4.17” x 3.15” x 26.4” x 1.97” (816mm x 106mm x 80mm x 670mm x 50mm)
MATERIALS
- Housing Material: Pa6 30% Glass fiber, Aluminium
- Transparent Part: Acrylic
- Fittings: Steel, Anodized
- Sealing: NBR
- Filter Material: Polypropylene (PP), Active Carbon (AC)
- Bonding: Polyurethane
Models & Specs
- WOSm1
- WOSm2
