sullair filtration

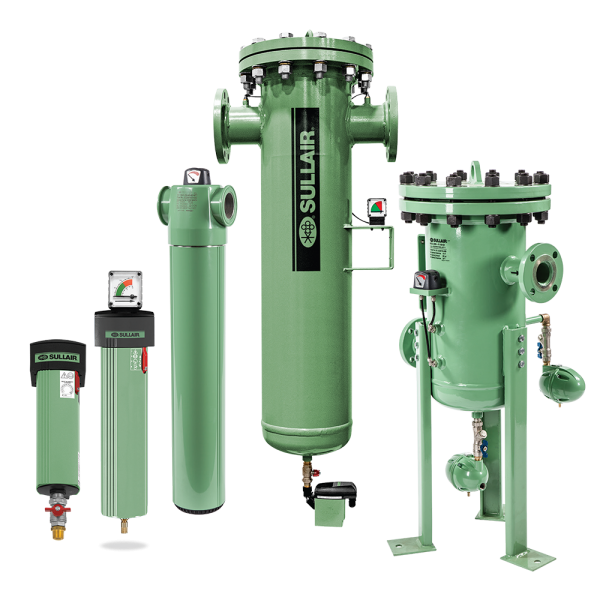

Sullair Filtration & Mist Elimination

SUPERIOR PERFORMANCE MEETS ENERGY EFFICIENCY

Sullair filters are built for reliable operation and designed to help you save money.

  • Engineered for energy efficiency — helps reduce operating costs
  • Durable housing construction for corrosion resistance
  • Broad filtration from general purpose to highly stringent applications
  • 25 – 21,000 cfm flow range
  • Coalescing filters to remove bulk liquid loads prior to air dryer
  • High efficiency oil removal filters to remove oil up to 99.99% efficient
  • Mist Eliminator style filters with large surface area, low pressure drop, to handle bulk liquid and oil prior to air dryer

Flow

25 - 21,000 cfm

.71 - 594.7 m³/min

Pressure

232 - 725 psi

16 - 50 bar

Features & Benefits

  • Engineered for energy efficiency — helps reduce operating costs
  • Durable housing construction for corrosion resistance
  • Broad filtration from general purpose to highly stringent applications
  • Optimized air flow design to help increase efficiency and reduce pressure loss
  • Built for safe and easy maintenance

Models & Specs

SX Series Threaded Filters
Coalescing, Particulate & Activated Carbon

  • Flow Rates scfm: 25 – 1900
  • Max Operating Pressure psig: 232
  • Max Operating Temperature °F: 140
  • Standard Connection: 3/8″ – 3″ NPT
  • Housing Material: Anodized, Powder-Coated Aluminum
  • Drains
    • Coalescing: Float drain
      SULLIMAX Zero Loss Drain optional
    • Particulate & Activated Carbon: Manual drain

FH Threaded Filters
High Pressure

  • Flow Rates scfm: 60 – 1750
  • Max Operating Pressure psig: 725
  • Max Operating Temperature °F: 176
  • Standard Connection: 1/4″ – 2 1/2″ NPT
  • Housing Material: Aluminum
  • Drains: Manual drain

FXFRHT Threaded Filters
Particulate High Temperature

  • Flow Rates scfm: 25 – 1600
  • Max Operating Pressure psig: 290
  • Max Operating Temperature °F: 350
  • Standard Connection: 1/2″ – 3″ NPT
  • Housing Material: Diecast Aluminum
  • Drains: Manual drain

SX Series Flange Filters
Coalescing, Particulate & Activated Carbon

  • Flow Rates scfm: 1900 – 21,000
  • Max Operating Pressure psig: 232
  • Max Operating Temperature °F: 140
  • Standard Connection: 4″ – 12″ ANSI Flange
  • Housing Material: Powder-Coated Carbon Steel
  • Drains
    • Coalescing & Particulate: SULLIMAX Zero Air Loss Drain
    • Activated Carbon: Manual drain

FWFRHT Series Flange Filters
Particulate High Temperature

  • Flow Rates scfm: 1500 – 17,700
  • Max Operating Pressure psig: 290
  • Max Operating Temperature °F: 350
  • Standard Connection: 3″ – 14″ ANSI Flange
  • Housing Material: Steel
  • Drains: External Float Drain
