Airtech Vacuum – Custom Blowers and Vacuum Pumps

Airtech Inc. is a leading global manufacturer and supplier of vacuum pumps, blowers and multiplex systems. In addition to a broad range of ready-to-ship products, we have the experience, expertise, technology, and design capabilities to quickly develop customized solutions that are backed by ISO9001 Certification—the highest possible designation of quality. A far-reaching network of distributors offer responsive and reliable supply and service at Airtech’s Rutherford, NJ headquarters, operations in Marietta, GA and Novato, CA. Our engineering design and manufacturing centers in the U.S., Europe and Asia give us access to worldwide resources, so we can provide innovative and cost-effective solutions.

REGENERATIVE BLOWERS

ROTARY VANE VACUUM PUMPS

LIQUID RING VACUUM PUMPS

OIL-LESS AIR COMPRESSORS

DRY PISTON PUMPS

AIRTECH SYSTEM APPLICATIONS

Regenerative Blowers

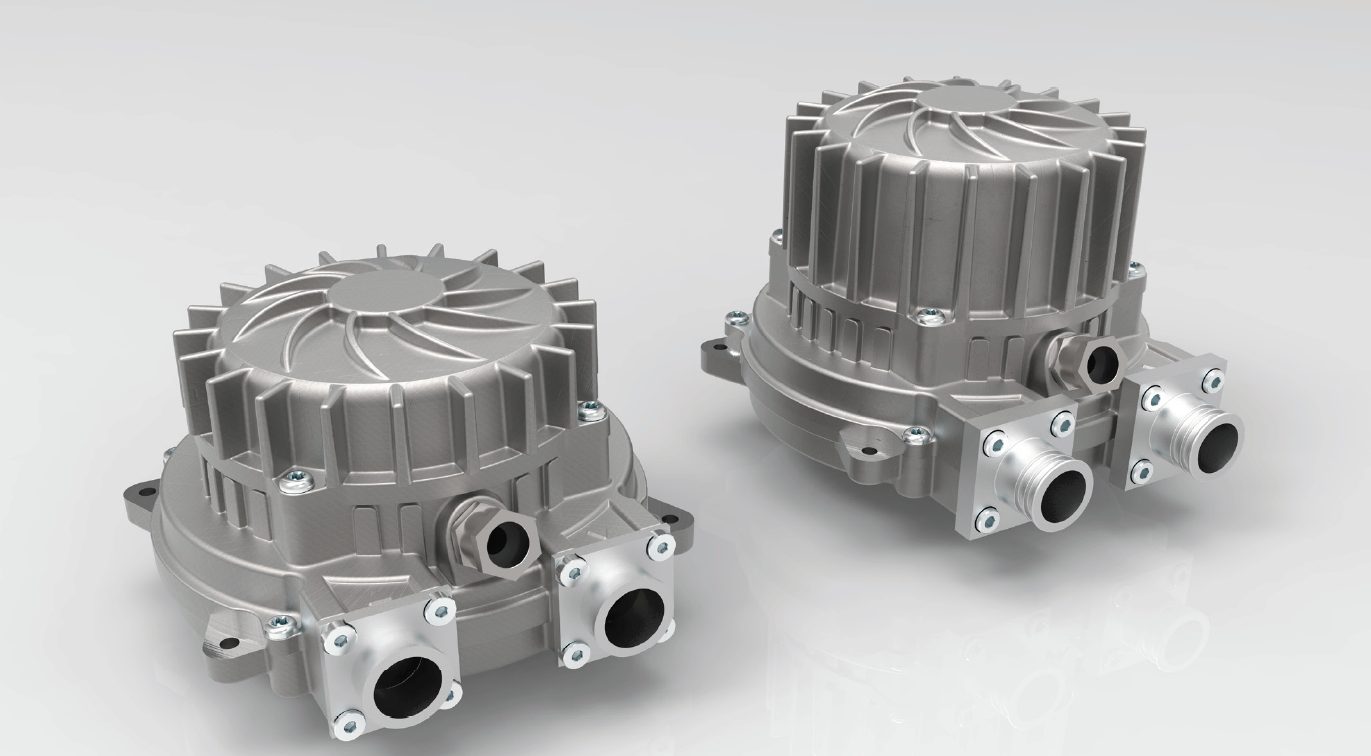

3BA1002 DC VARIABLE SPEED BLOWERS

3BA1002 DC Variable Speed Air Compressor Blower
  • Maintenance free operation
  • Low operating & energy costs
  • Operation with brushless DC motor controller
  • Operation up to 15,000 RPM
  • Highly versatile mounting configurations
  • Patented noise abating impeller
  • 48-36-24-12V DC Voltage range motors
  • Built-to-last design for more than 20,000 operating hours
  • Applications: Medical, Aeration, Laboratory, Automotive

3BA1 SERIES SINGLE AND DOUBLE STAGE BLOWERS

Airtech Vacuum Blowers
  • Used for vacuum and low-pressure service
  • 20,000 operating hours without maintenance down time
  • Capacity up to 1,440 CFM
  • Up to 15” HgV / Up to 11 PSIG
  • 0.31 to 38.8 HP
  • Applications: Aeration, Drying (Air Knife), Pick & Place, Vacuum Hold Down

3BA7 SERIES SINGLE, DOUBLE AND TRIPLE STAGE BLOWERS

Regenerative blowers deliver incredible performance without producing a great deal of noise. They are reliable, low maintenance and durable.

  • Used for vacuum and low-pressure service
  • 20,000 operating hours without maintenance down time
  • Capacity up to 120 CFM
  • Up to 21.5” HgV / Up to 15.1 PSIG
  • 1.11 to 11.52 HP
  • Applications include: Aeration, Drying (Air Knife), Pick & Place, Vacuum Hold Down, & Vacuum / Pneumatic conveying

3BA9 SERIES SINGLE, DOUBLE AND TRIPLE STAGE BLOWERS

  • Used for vacuum and low-pressure service
  • 40,000 operating hours without maintenance down time
  • Capacity up to 500 CFM
  • Up to 20.1” HgV / Up to 14.7 PSIG
  • 6.1 to 28.4 HP
  • Applications include: Aeration, Vacuum Hold Down, & Vacuum / Pneumatic conveying

INTEGRATED VARIABLE FREQUENCY DRIVE BLOWERS

Variable speed blowers offer many benefits. Reducing speed can extend bearing life, reduce heat output, and reduce power during low demand. Increasing speed allows for more performance with smaller units, matching demand in real time,
increased efficiency, and more. Variable frequency drive technology is used to control blower output via varying speed. This technology is ideal in applications with variable operating loads. Blowers integrated with variable frequency drives
can also achieve higher capacities, differential pressures, and higher efficiencies as compared to their fixed-speed counterparts.

CUSTOM SOLUTIONS

From our explosion proof 3BA regenerative blower to our hermetically sealed / magnetic drive design, we can handle your most difficult application. We can provide units with special coatings like electro-less nickel for corrosion resistance. For extreme cases, we can manufacture your blower to a specific material of construction like stainless steel and various elastomers. We can also accommodate a wide variety of different motor specifications.

3BA SERIES SYSTEMS

Airtech specializes in designing and constructing systems designed and built to meet each customer’s specific needs, and 3BA Series blowers can be used in a wide variety of vacuum and low-pressure air systems. Our systems can incorporate state-of-the-art control options for remote monitoring capabilities. HMI (Human Machine Interface) display allows visualization of industrial controls and monitoring systems. Optional BAS (Building Automation System) like BACnet, LonWorks, and SCADA can be included.

Rotory Vane Vacuum Pumps

L-SERIES OIL LUBRICATED ROTARY VANE VACUUM PUMPS

  • Durable and reliable
  • Capacity range of 7 to 460 CFM
  • 0.75 to 25 HP
  • TEFC high-efficiency tri-voltage motor (208-230-460V 50/60)
  • End vacuum of 29.9” HgV

VACUUM BOOSTERS

  • Positive displacement (Roots Type Blower) used in conjunction with mechanical backing pump
  • Weighted bypass design that allows start-up from atmosphere
  • Pump down times cut by up to 50%
  • Capacity up to 1,524 CFM
  • 3 to 10 HP

KRF SERIES DRY ROTARY VANE VACUUM PUMPS

  • Compact and low maintenance
  • Handles vacuum and pressure applications
  • Vacuum and low-pressure service
  • Capacity range of 5.5 to 150 CFM
  • 0.25 to 10 HP
  • End vacuum of 27.5” HgV & pressure to 14 PSIG

VCX ROTARY CLAW PUMPS

  • Dry, contact-free operation
  • Low maintenance
  • Variable Frequency Drive compatible
  • Handles vacuum and pressure applications
  • Vacuum Capacity: 40 to 353 CFM, 2 to 15 HP, End vacuum of 27” HgV
  • Pressure Capacity: 70 to 353 CFM, 7.5 to 50 HP, Up to 31.9 PSIG

ATV SERIES ROTARY VANE VACUUM PUMPS

  • Single stage, air-cooled, and direct drive.
  • High water handling capability
  • Variable speed option available for energy savings.
  • Eliminates the need for water and reduces power consumption significantly
  • Extremely low maintenance
  • Special aluminum alloy vanes provide no wear
  • Designed to run for 20 years between rebuilds
  • 5-year warranty if using the recommend factory service plan
  • Capacity up to 2,000 CFM
  • 20 to 125 HP
  • End vacuum of 29.84” HgV

Liquid Ring Vacuum Pumps

3AV LIQUID RING VACUUM PUMPS

  • Compact – Closed coupled design
  • Standard cast iron housing and stainless-steel impeller/port plate & PTFE flap valve
  • Capacity range of 6.7 to 262 CFM
  • 0.70 to 20 HP
  • End vacuum of 28.5” HgV
  • Optional air-jets option to achieve vacuum levels better than 29.5” HgV

3AVN LIQUID RING VACUUM PUMPS FOR HIGH LIQUID CARRYOVER

  • Compact – Closed coupled design
  • Up to 5 times the delivery of liquid as compared to conventional liquid ring vacuum pumps
  • Capacity range of 65 to 125 CFM
  • 6.2 to 11 HP
  • End vacuum of 28.2 HgV

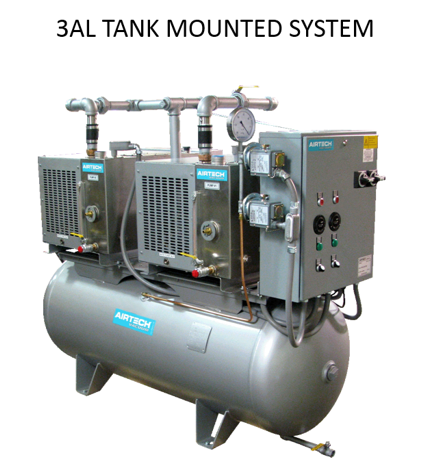

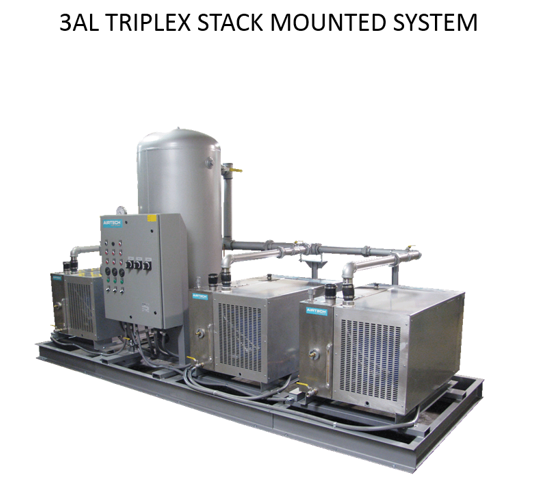

3AL – SELF CONTAINED LIQUID RING VACUUM PUMPS

  • Alternative to rotary vane vacuum pumps and older liquid ring technology.
  • Makeup water for all 3AL series pumps is a constant 0.06 gallons per minute – significant water savings versus using a traditional once through liquid ring vacuum pump.
  • Food Grade Configuration with all external components in 304 Stainless available
  • Capacity range of18 to 262 CFM
  • End vacuum of 28.2 HgV
  • Capacity range of 65 to 125 CFM
  • 1.5 to 20 HP
  • End vacuum of 28.5” HgV
  • Optional air-jets option to achieve vacuum levels better than 29.5” HgV

3AVU LIQUID RING VACUUM PUMPS

  • Single Stage Design
  • Slower spinning curved blades reduces tip speed enhancing the life expectancy of the pump
  • Capacity range of 15 to 1,100 CFM
  • 1.5 to 75 HP
  • End vacuum of 26” HgV

3AVH LIQUID RING VACUUM PUMPS

  • Two Stage Design
  • Slower spinning curved blades reduces tip speed enhancing the life expectancy of the pump
  • Capacity of 15 to 1,000 CFM
  • 1.5 to 75 HP
  • End vacuum of 29” HgV

OIL-LESS AIR COMPRESSORS

CIT SERIES (DIRECT DRIVE) OIL-LESS COMPRESSOR

  • Direct drive
  • One cylinder design
  • Oil-less construction
  • Low noise
  • Capacity range of 4.5 to 13 CFM
  • 1 to 2.5 HP
  • Up to 110/125 PSIG

SDU SERIES (RECIPROCATING) OIL-LESS COMPRESSOR

  • Meets NFPA 99 Applications
  • Capacity of 13 TO 110.5 SCFM @ 50 PSIG
  • Capacity of 11.5 TO 102.5 @ 100 PSIG
  • 3 to 30 HP
  • Up to 125 PSIG

Dry Piston Pumps

HP SERIES DRY PISTON VACUUM PUMPS AND COMPRESSORS

  • Lightweight compact design
  • Single phase (115/220V)
  • Vacuum capacity: 2 to 5.8 CFM, End vacuum of 26.77/ 29.13” HgV
  • 150 to 680 Watts (Vacuum)
  • Compressor capacity 1.8 to 3.7 CFM, up to 100 PSIG
  • 400 to 750 Watts (Pressure)

Airtech System Applications

Airtech systems are used in a range of industries; Medical, Dental, Laboratory, Environmetnal Remediation and a variety others. See just a few of our sample systems below.

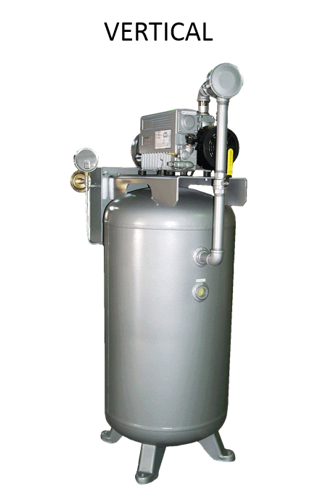

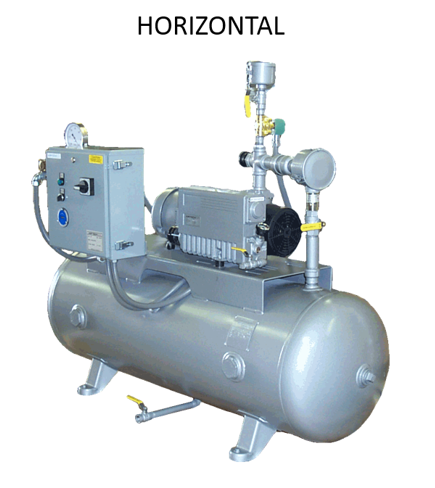

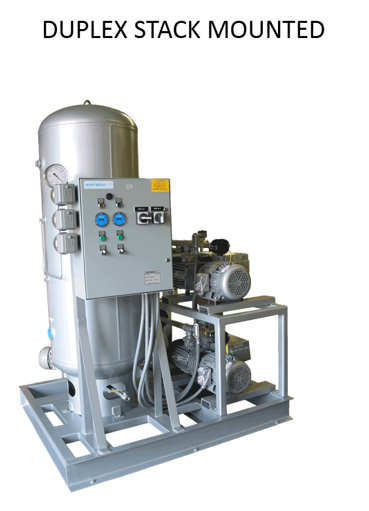

Simplex Rotary Vane Tank Mounted

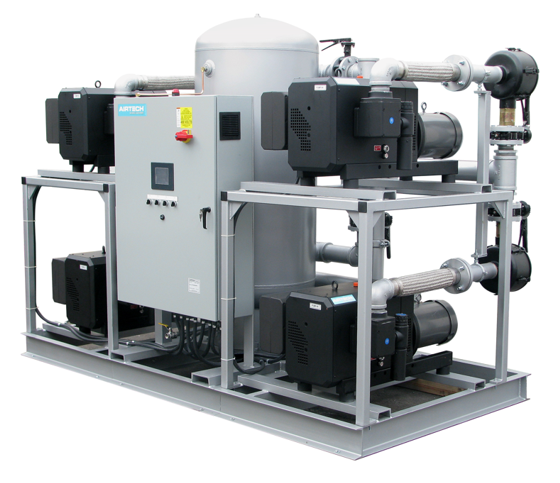

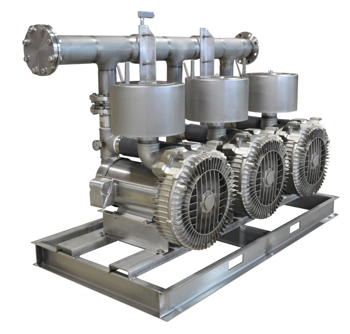

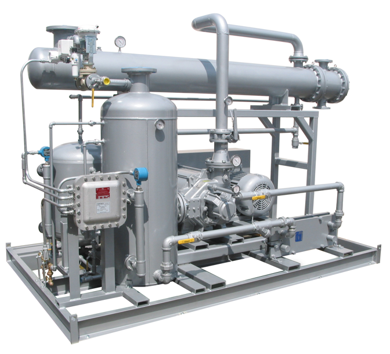

Custom Systems

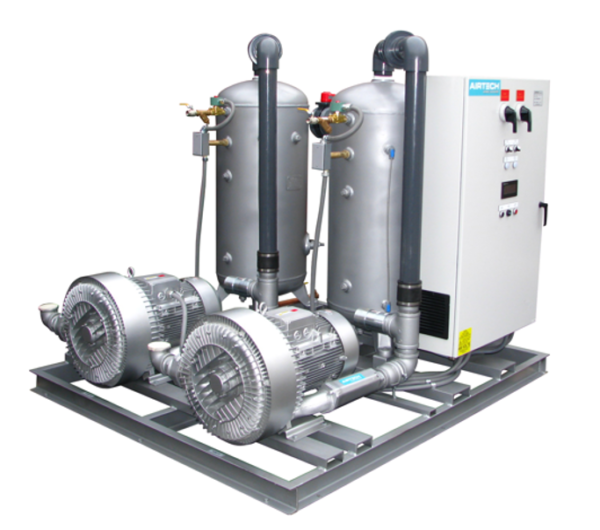

Dental Systems

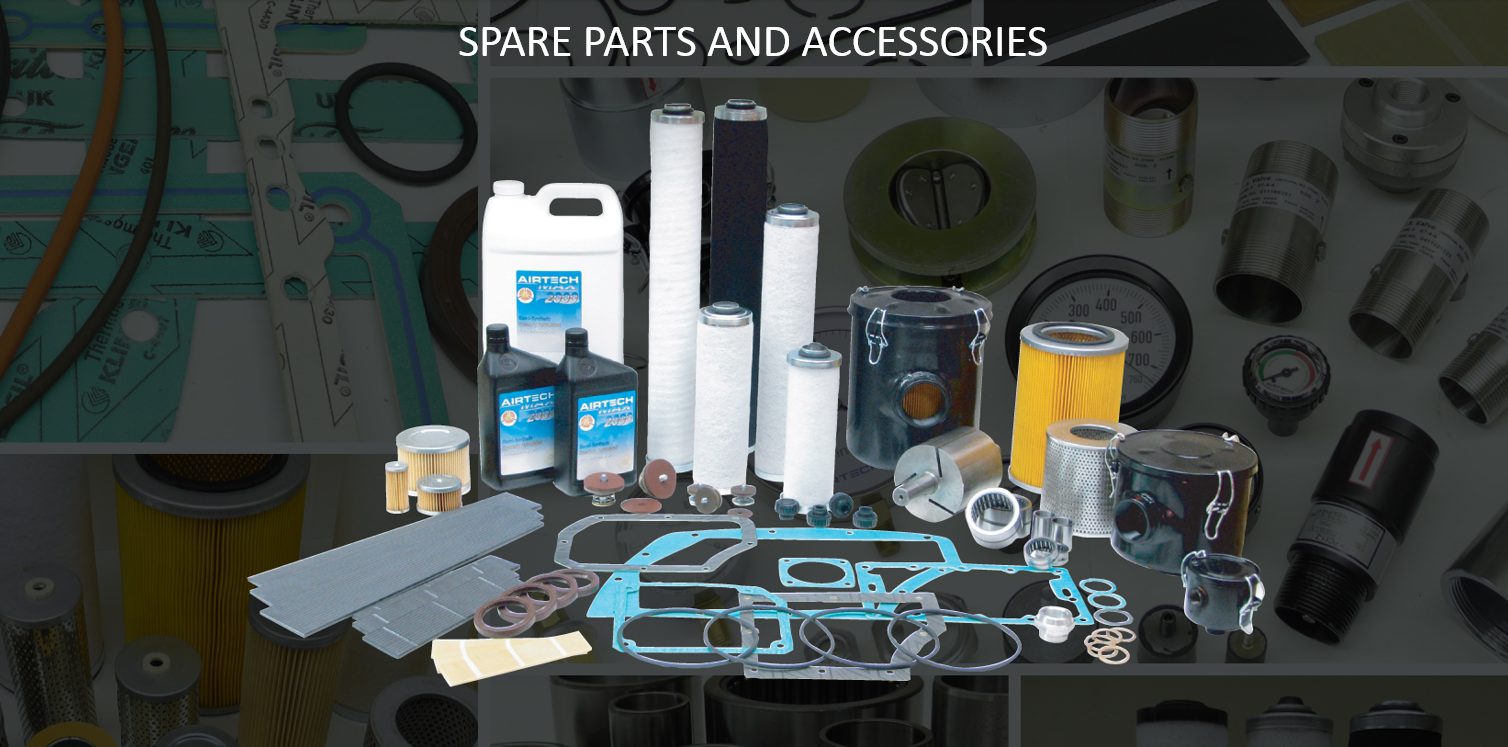

Airtech warehouses most brands of vacuum pump accessories and spare parts. Our vast inventory of components are in stock at all locations throughout the USA.
