Hankison

• The FLEX Series lowers air system power costs and improves productivity by matching power consumption to compressed air demand. In a typical manufacturing facility, up to 30% of the electricity consumed is for generating and treating compressed air. To reduce the total cost of operation and qualify for utility company incentive programs, proper air treatment equipment selection and application is required.

More Information

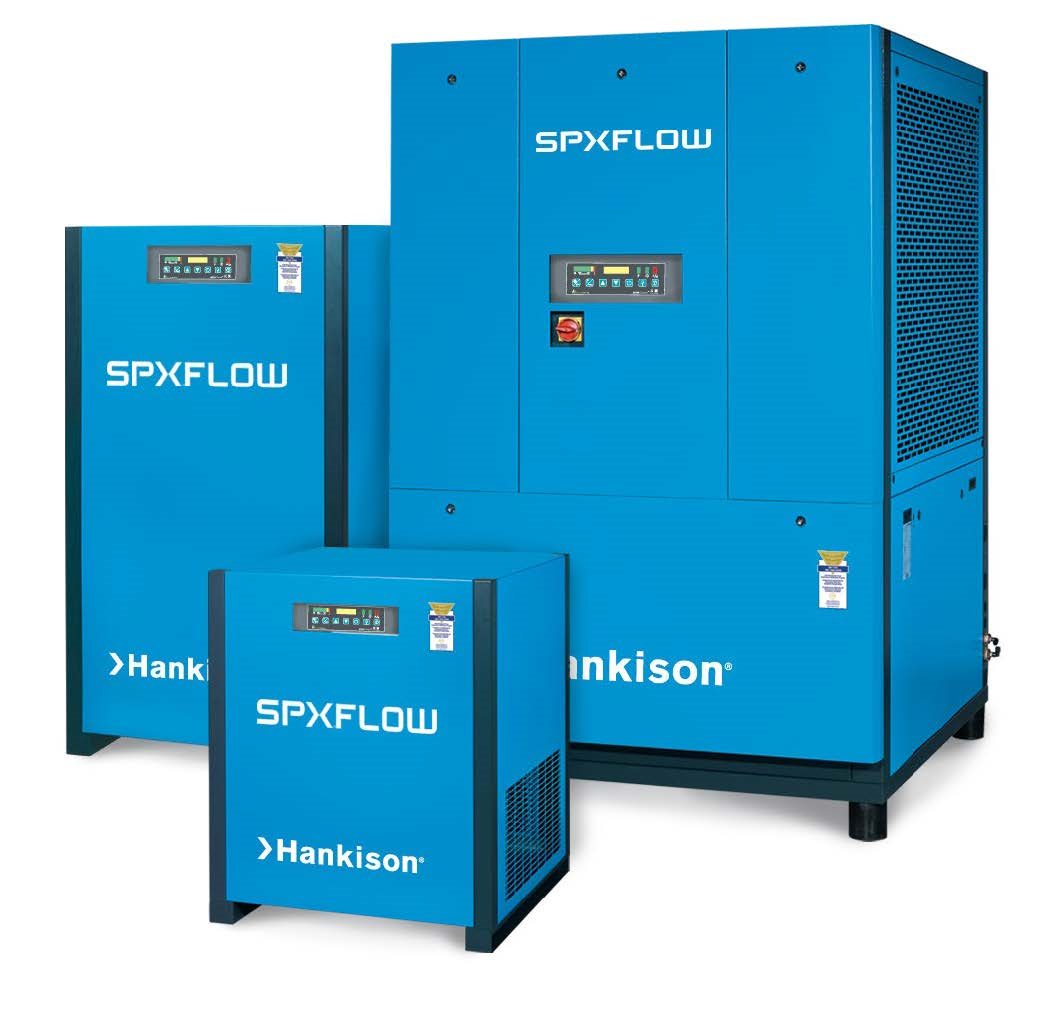

• • When Hankison streamlined their HPR & HPRN Series non-cycling refrigerated compressed air dryers, their engineers focused on simplicity and reliability. Your input helped build a solution that offers the right combination of technology and simplicity to keep your air system at a dry, 38°F (+3°C) pressure dew point, from 5 through 1200 scfm. These dryers are built for durability, in a space-saving design. Sturdy sheet steel is formed and protected by an epoxy-based powdercoat finish. Plus, Hankison’s industry leading, five year warranty is now available for the HPRN Series.

More Information

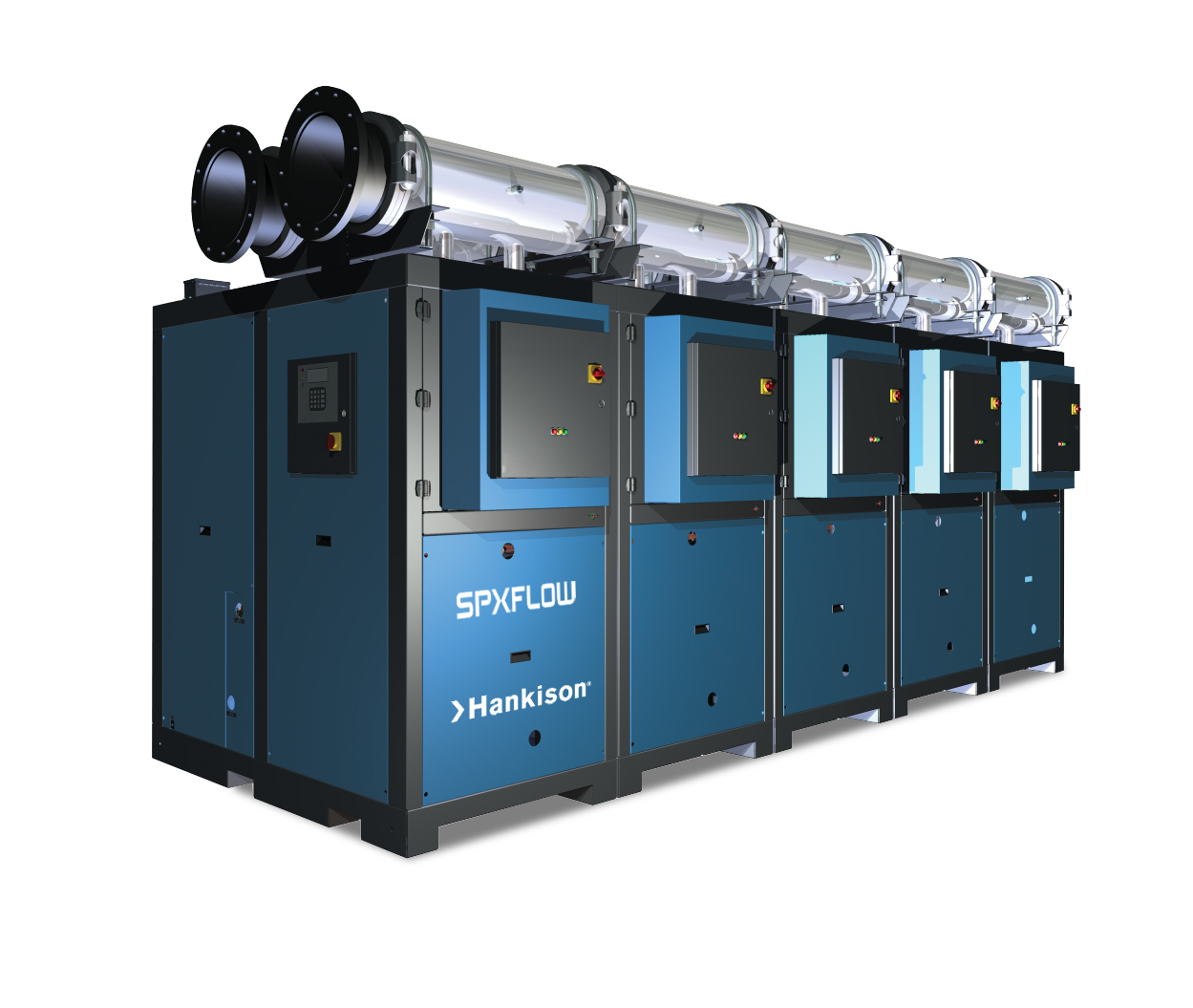

Digital Evaporator Technology continues the Hankison tradition of stable 38°F (3°C) dew points. The HES Series, offers energy saving advantages over traditional non-cycling, cycling and variable speed designs. Hankison technology platforms of heat exchangers, filtration and refrigeration are CSA and UL certified.

Rapid Return-On-Investment (ROI)
The HES Series is designed to provide a rapid return on investment by:

• Reducing the dryer’s energy consumption down to 9% (91% savings) at 0% load
• Precise matching of average air flow (heat load) with the required input kW power
• Qualifying for energy rebates offered by utility companies
• Maintaining a stable 38°F (3°C) dew point with no dew point spikes

Hankison crafts quality refrigerated dryers engineered to match the specific air demands of your compressed air system.

More Information

Save, Optimize Performance Energy!

The HES Series significantly lowers total cost of operation by consuming electrical power (kWh) in direct proportion to real-time demand.

Meeting the Needs of Today…

The HES Series features modular construction offering multiple design variations for flexible arrangement.

…Anticipating Opportunity for Tomorrow

Redundancy in critical components offers fault-tolerant operation, delivering optimal system reliability. The HES series offers back-up drying protection presenting alternative drying capability in the presence of component failure.



More Information

• Compressed air demand in most plants fluctuates significantly. Hankison offers compressed air users the refrigerated air drying technology to meet the needs of their critical applications and deliver high-quality air.Series dryers deliver stable ISO8573.1 Quality Class 4 and Class 5 pressure dew points and remove solid particulates and oil from compressed air systems across all operating flows.



More Information

Hankison HPET Series dryers are built in accordance to UL/CSA certification and designed for 725 psig (51 bar) operation. The HPET system incorporates compact plate heat exchanger technology in order to maintain stable 38°F (3°C) dew points for the life of the unit.

HPET dryers are tailored for specific industrial applications to include blow molding, aeronautical valve testing, pharmaceutical packaging and injection molding. The time-tested, field proven technology will provide years of trouble free service and are supported through Hankison’s global network of service professionals.

HPET is the solution!



More Information

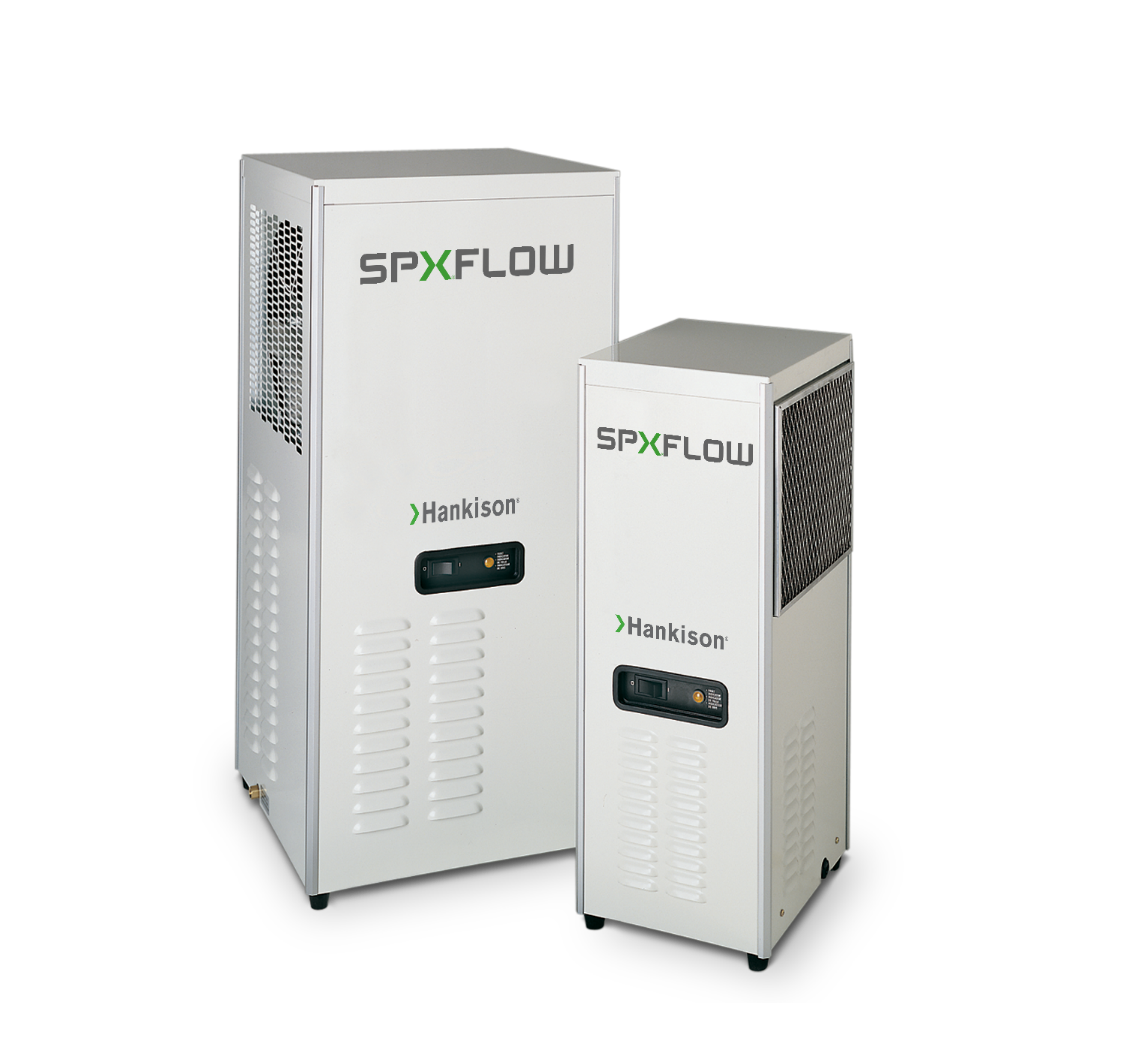

• HITN (High Inlet Temperature) refrigerated compressed air dryers are compact with highly efficient heat exchangers, no internal mesh to foul. Heat exchange efficiency is increased by creating helix flow paths in counterflow arrangement. The two-stage separator/filter removes condensed oil ad water over a wide range of flows. A reliable condensate drain – air operated – automatically discharges water and oil from dryer without air loss and no timer to adjust. Our automatic refrigeration temperature control system maintains precise chilled air temperature that never needs to be adjusted for load, ambient or seasonal changes. No freeze-ups! A Hermetic refrigeration system requires no maintenance & no adjustments – it operates as reliably as your home refrigerator.

More Information

• Compact and intuitive, Hankison’s HSHD Series Modular Desiccant Air Dryers feature robust communications, are CSA/UL approved, and CRN registered. As powerful as it is versatile, HSHD was designed and proven in Germany to protect moisture-sensitive applications requiring low-pressure dew points by delivering dew points of

ISO 8573-1: 2010 Class 1 (-100°F, -70°C) and Class 2 (-40°C) with flow rates of 7 to 40 scfm (12m³/h to 68m³/h). The

• HSHD series is a perfect solution for labs, hospitals, pharmaceutical manufacturing, and other high-tech installations that demand performance and reliability.

More Information

A Spray Painter’s Assurance For A Flawless Finish
State-of-the-art refinish materials and moisture-sensitive pneumatic tools require compressed air treatment. Modern spray guns, particularly HVLP, require greater volumes of air to atomize today’s high-solids coatings. Greater volumes of air carry greater volumes of water, oil, and dirt which must be removed. A HDF Series compressed air dryer can eliminate that damaging water, dirt, and oil which can ruin your refinish work.

HDF Series Single Tower Desiccant Dryer Features:

• Produce pressure dew points as low as -40°F (-40°C)
• Rugged powder-painted, corrosion-resistant aluminum housing which can be installed in-line
• Charge of silica gel desiccant adsorbs moisture from the compressed air
• Desiccant change-out indicator offers convenient monitoring of desiccant condition
• Desiccant change-out indicator turns color from blue to white
• Integrated 15 micron cleanable dust filter

The benefits for your shop are:

• Increased shop capacity to process more cars
• Helps get on the “preferred” lists for referrals from insurance companies
• Fewer labor hours and materials per paint job
• Better bottom-line for the company

HHS Series Automatic SensaTherm^® Energy Savings
HHS Series with SensaTherm^® automatically matches purge air use to the demand on the system. This ensures maximum performance as the energy saved goes right to your bottom line. Controller features vacuum fluorescent text display that communicates energy savings, operating mode and service reminders. Select from one of the four pressure dew point settings to optimize your savings for each season.

HHL Series Selectable Purge Economizer Savings
HHL Series provides user selectable energy savings. Tailor the drying cycles, to match your peak air demand, in 10 percent increments. In addition, this state-of-the-art controller offers four pressure dew point settings to further tune your savings and adapt the system to your environment.

HHE Series-40°F Dew Point Performance – Pure and Simple
HHE Series presents traditional heatless drying technology. Using a simple timer based controller, these are designed to deliver maximum value to applications that operate at or near full capacity. Automatic time controlled bed regeneration cycles offer consistent performance and economy of purchase.



More Information

HBP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40°F/-40°C) dew point performance is guaranteed. HBP Series compressed air dryers will produce the design dew point while operating continuously at maximum rated flow (100% duty cycle) at CAGI ADF 200 inlet standards of 100°F inlet temperature and 100% relative humidity at 100 psig.

Blower purge type regenerative compressed air dryers are an economical and reliable way to dry compressed air to dew points below the freezing point of water. Desiccant dryers lower the dew point of compressed air by adsorbing the water vapor present in the compressed air onto the surface of the desiccant. Adsorption continues until equilibrium is reached between the partial pressure of the water vapor in the air and that on the surface of the desiccant. These dryers continuously process compressed air by using two identical towers, each containing a desiccant bed. While one tower is on-stream drying, the other tower is off-stream being regenerated (reactivated, i.e. dried out). The towers are alternated on and off-stream so that dry desiccant is always in contact with the wet compressed air. In this way a continuous supply of dry air downstream of the dryer is possible. The switching from one tower to the other is controlled by a solid-state controller on either a fixed time basis (standard) or a demand basis (optional).



More Information

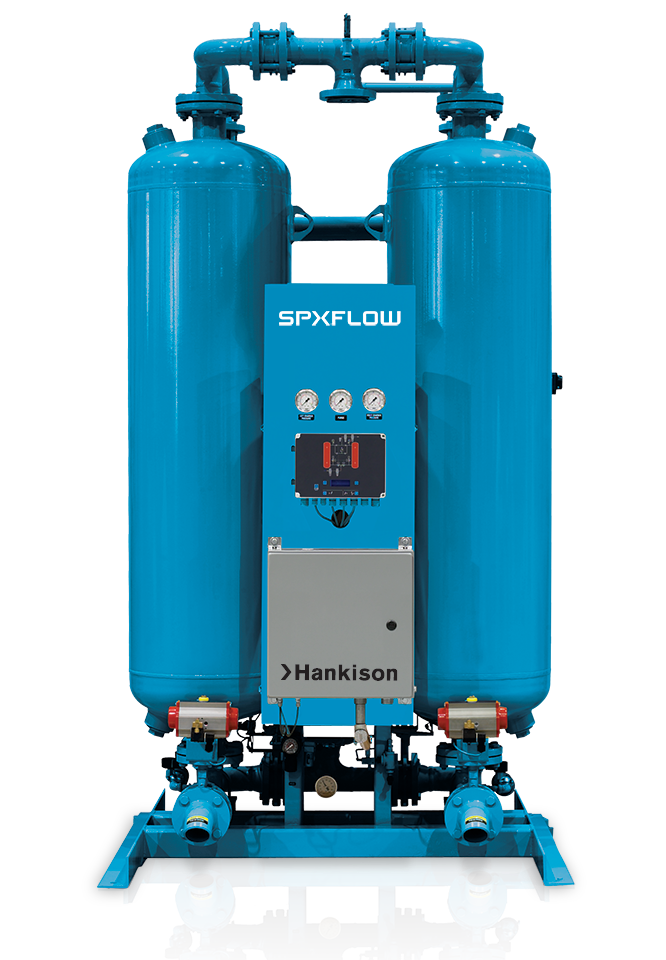

Hankison HPD Series dryers will produce the design dew point while operating continuously at maximum rated flow (100% duty cycle) at CAGI ADF 200 inlet standards of 100°F inlet temperature and 100% relative humidity at 100 psig.

Standard HPD Series (Heated Blower Purge) Desiccant Compressed Air Dryers: -4°F to -40°F Pressure Dew Points
Designed for applications that were previously forced to accept a 40°F pressure dew point when simple protection against seasonal freezing is the issue. The standard design delivers ISO 8573.1 dew points between Class 2 and Class 3 automatically. Class 2 (40°F) dew points protect against freezing during low ambient conditions and Class 3 (4°F) dew points keep your air system bone dry during the heat of summer. Applications that require Class 2 (-40°F) dew points year round simply need to select the Free-Air (FA) Supercharger option package



More Information

Where Ideas Meet Industry
The Hankison HCD Series provides a cost effective solution to remove moisture from compressed air. The sustainable energy saving design reduces operating costs and delivers instrument quality air.

Thermal energy generated during the air compression process is effectively utilized to regenerate the off-line desiccant bed. Ideally suited for oil-free air compressors, HCD series dryers turn “waste heat” into energy savings.

Advantages:

• • Consumes under 50 watts, less than the power requirement of a typical lap-top computer
  • Offers the lowest cost of operation as compared to conventional dehydration technology
  • Delivers ISO 8573.1: 2010 Air Quality 2 to 4 (-40°F to +37°F)
  • Fully packaged, skid mounted design, provides ease of installation

More Information

Taking Your Workers from Hazard to Health

The Catalite^@ Breathing Air Series Purifiers encompass Hankison’s premium performance technology in order to provide the clean, dry air necessary to keep your workers safe. The CBA Series is designed to be used as an addition to your plant air source to convert compressed air to breathable air for those processes identified as hazardous.

Hankison’s Catalite^@ breathing air purifiers have been engineered to handle flow capacities from 15 to 940 scfm (25 to 1597 nm³/h) and remove contaminants in six stages of filtration in order to meet OSHA, CGA, ANSI, and CSA breathing air standards. At the core of the process is a heatless regenerative desiccant dryer with a fixed 10 minute dryer cycle delivering consistent ISO 8573-1: 2010 Class 2 (-40°F, -40°C) outlet pressure dew point quality air. Offering advanced controls and analyzers the Catalite® Breathing Air Purifier is the complete solution for your breathing air treatment processes.

This is equipment is intended for industrial applications only. Consult factory for non-industrial applications.
