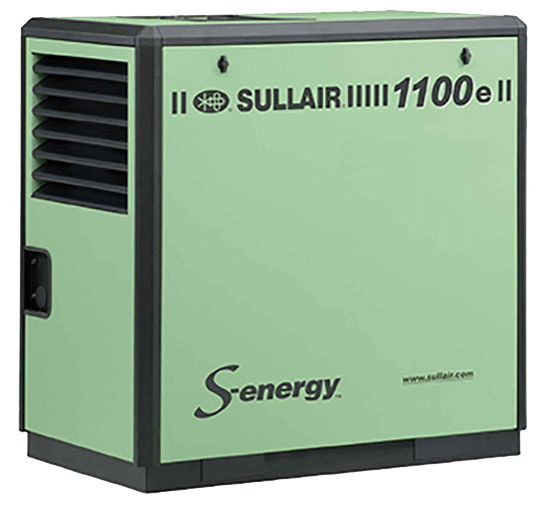

Sullair S-energy 1100E-1800E Air Compressor

S-ENERGY 1100E-1800E ROTARY SCREW AIR COMPRESSORS

COMPACT. MAINTENANCE-FRIENDLY. QUIET.

Sullair S-energy® Series compressors revolutionize serviceability and help provide a cleaner, safer work environment—all in a durable, cost effective package.

Low life cycle costs
Quiet design
Small footprint

15 – 25 HP, 43.7 – 107.8 cfm, 100 – 175 psig.
High-Performance, Energy-Efficient Design
WS Microprocessor Controller
Legendary Sullair Air End
10-Year Air End Warranty
5-Year Warranty covering the motor, coolers, and air/fluid vessel
10,000-hour Genuine Sullube factory fill lubricant
Standard Features: TEFC motors, Y-Delta Starters, Sound Attenuated Enclosure, NEMA 4 Electricals, Heavy Duty Filter and Phase Monitor Relay
Options Include Variable Speed Drive (NEMA 12). Cold Weather Package, Weather Hood, Total Package Filtration, AirLinx Remote Monitoring

Flow

43 – 107.8 cfm

1.2 - 3.05 m³/min

Pressure

100 – 175 psi

7 - 12 bar

Power

15 – 25 hp

11 – 18 kW

Features & Benefits

Low restriction inlet valve for better cfm performance
Low life cycle costs including long-life bearings, rotors, and consumable parts
Less than 1 ppm fluid carryover
Excellent motor cooling design characteristics for longer motor life
Wye Delta Starter
TEFC Motor
- Slow speed—1800 rpm
- Cast iron construction
- NEMA design
- Direct coupled/flange mounted
- Most comprehensive warranty in the industry
WS ControllerTM standard
- Graphic display is clear and concise
- Get critical operations information more easily, including status, temperature, pressure, and load/unload set points
- Use a Windows PC to remotely monitor, upgrade the software, and set up changes
- Built-in sequencing of up to 16 machines
Easy access oil sampling valve
Small footprint
Quietest in its class, as low as 67 dBA
12 unique serviceability features
Environmental, health, and safety design features
Genuine Sullube®—10,000 hour, non-varnishing, biodegradable compressor fluid
Optimalair® air filter provides 10 times better filtration than other filters

Options

Variable Speed Drive (VSD)
Cold weather package
Weather hood
Total package filtration
Other motors and starters

Models & Specs

60 Hz Models:

1800—25 hp (18 kW), 85 to 119 acfm (2.40 to 3.37 m³/min), 100 to 175 psig (7 to 12 bar)
1800V—25 hp (18 kW) Variable Speed Drive (VSD), 81 to 107 acfm (2.30 to 3.05 m³/min), 100 to 175 psig (7 to 12 bar)
2200—30 hp (22 kW), 104 to 140 acfm (2.94 to 3.96 m³/min), 100 to 175 psig (7 to 12 bar)
2200V—30 hp (22 kW) Variable Speed Drive (VSD), 105 to 138 acfm (2.97 to 3.90 m³/min), 100 to 175 psig (7 to 12 bar)
3000—40 hp (30 kW),138 to 163 acfm (3.90 to 4.61 m³/min), 125 to 175 psig (9 to 12 bar)
3000V—40 hp (30 kW) Variable Speed Drive (VSD), 140 to 163 acfm (3.96 to 4.61 m³/min), 125 to 175 psig (9 to 12 bar)

50 Hz Models:

1800—25 hp (18 kW), 84 to 109 acfm (2.38 to 3.09 m³/min), 100 to 175 psig (7 to 12 bar)
1800V—25 hp (18 kW) Variable Speed Drive (VSD), 84 to 109 acfm (2.38 to 3.09 m³/min), 100 to 175 psig (7 to 12 bar)
2200—30 hp (22 kW), 102 to 133 acfm (2.89 to 3.77 m³/min), 100 to 175 psig (7 to 12 bar)
2200V—30 hp (22 kW) Variable Speed Drive (VSD), 102 to 134 acfm (2.89 to 3.79 m³/min), 100 to 175 psig (7 to 12 bar)
3000—40 hp (30 kW),132 to 176 acfm (3.74 to 4.98 m³/min), 100 to 175 psig (7 to 12 bar)
3000V—40 hp (30 kW) Variable Speed Drive (VSD), 132 to 176 acfm (3.74 to 4.98 m³/min), 100 to 175 psig (7 to 12 bar)
