Sullair – Air Treatment

Sullair offers a complete line of compressed air treatment products. The product line includes a variety of highly efficient, reliable refrigerated air dryers, non-cycling and cycling dryers. The desiccant dryer line features heatless, heated, heated blower purge, and heat of compression style dryers. Sullair’s filter product line has a variety of coalescing filters and mist eliminator style process filters. A complete line of affordable and reliable demand drains insures that the moisture that is collected from the filters and dryers is removed from the air system. Sullairs innovative oil / water separators then treat the condensate so the oil is properly disposed of and the water is treated to insure the environment isn’t affected.

Non-Cycling Refrigerated Air Dryers

SULLAIR NON-CYCLING REFRIGERATED AIR DRYERS
  • 10 – 10,000 cfm flow range
  • Aluminum heat exchanger designed for minimum pressure drop and maximum efficiency
  • Controlled by a hot gas bypass valve for stable dew point in a range of operating conditions
  • Oversized condensers and smaller compressors
  • Automatic condensate drains, integrated Sullimax demand drain optional feature.
  • Easy to open panels for access for servicing the unit
  • More Information

Cycling Refrigerated Air Dryers

SULLAIR CYCLING REFRIGERATED AIR DRYERS
  • 30 – 6,000 cfm flow range
  • Oversized heat exchanger to provide thermal storage, lower pressure drop, and efficient heat transfer
  • Controlled by a hot gas bypass valve for stable dew point in a range of operating conditions, models 30-500 cfm
  • Variable speed drive compressors to reduce the energy during part load conditions, models 800-6,000 cfm
  • Oversized condensers and smaller compressors
  • Automatic condensate drains, integrated Sullimax demand drain optional feature.
  • Easy to open panels for access for servicing the unit
  • More Information

Desiccant Air Dryers

Sullair RDHL Heatless Desiccant Air Dryers
  • 80 – 10,000 cfm flow range
  • Heatless Modular desiccant air dryers from 3 – 240 cfm
  • Heatless Twin Tower desiccant air dryers from 80 – 5000 cfm
  • Heated desiccant air dryers from 200 – 3500 cfm
  • Heated Blower Purge dryers from 500 – 10,000 cfm
  • Heat of Compression dryers from 500 – 20,000 cfm
  • More Information

Filtration

  • 25 – 21,000 cfm flow range
  • Coalescing filters to remove bulk liquid loads prior to air dryer
  • High efficiency oil removal filters to remove oil up to 99.99% efficient
  • Mist Eliminator style filters with large surface area, low pressure drop, to handle bulk liquid and oil prior to air dryer
  • More Information

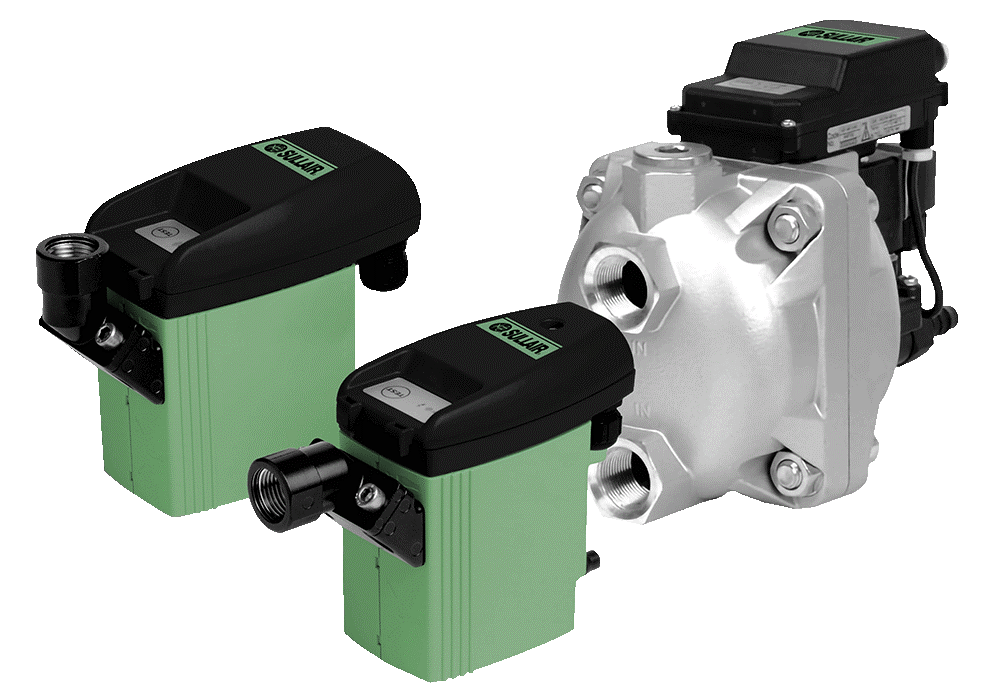

Condensate Drains

Sullair SULLIMAX Compressed Air Condensate Drains
  • 5 – 5,000 cfm flow range
  • Highly efficient demand drains for all applications
  • Reliable electronic actuated demand drains
  • Visual alarm when drain is not functioning properly
  • Kits available for routine maintenance that insure the drains longevity and reliability.
  • More Information

Oil / Water Separators

  • 45 – 7200 cfm flow range
  • Designed to separate oil from the condensate that comes off the compressed air equipment.
  • The separator system strips the oil from the water so it can be properly disposed of.
  • This allows the remaining condensate to be sent to the water treatment facility for further treatment.
  • More Information
